Case Construction CX30C Mini Excavator

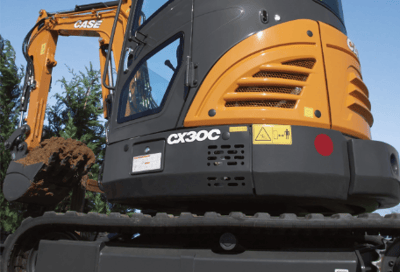

Case Construction CX30C.jpg

Product Description

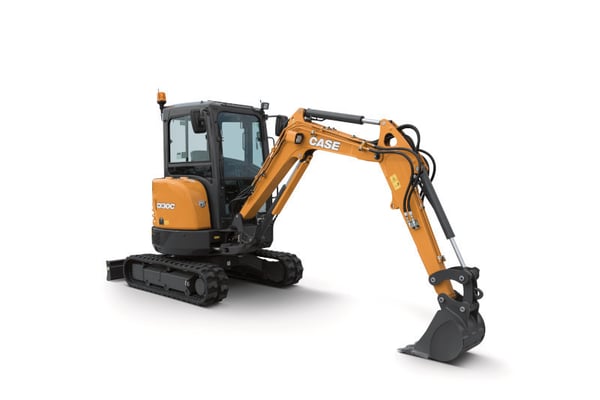

Case Construction CX30C excavator.png

MEET THE CX30C EXCAVATOR

An operating weight of three metric tons, digging forces of more than 4,500 lbs., yet still in a transport-friendly size that can be towed with a pickup truck– compact power is what the CX30C mini excavator is all about. A zero-tailswing design, powered by a 25-hp Tier 4 Final engine, is complemented by performance-enhancing standard features such as proportional controls, automatic 2-speed travel and an adjustable offset boom. It all comes together to give contractors the nimble strength needed for demanding, close-quarter jobs.

ADJUSTABLE OFFSET BOOM

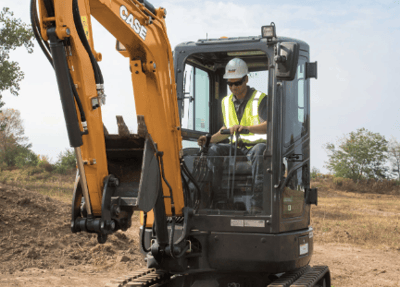

Case Construction CX30C offset boom.png
The CX30C excavator features an adjustable offset boom that enhances your line of sight, providing improved precision during work. This design also offers better maneuverability in tight spaces, making it ideal for confined job sites.

UNMATCHED VERSATILITY

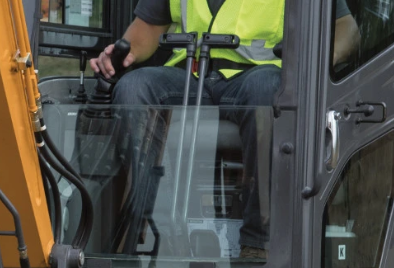

Case Construction CX30C controls.png
Proportional thumb-roller controls allow for convenient operation of attachments, a pattern selector lets operators easily switch between SAE and ISO pattern changeover and 1- or 2-way flow combination auxiliary hydraulics give the operator the versatility to run a variety of attachments.

Specs

Additional Specs
Cab Enclosure
Optional
Tail Swing
2' 6"
Tail Swing Type
Zero
Operator Station
ROPS
Engine
Displacement
77 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Kubota D1305
Fuel Type
Diesel
Gross HP
24.8 hp
No. Of Cylinders
3
Performance
Arm Digging Force
3080 lb
Boom Swing Angle Left/Right
75 degrees left/50 degrees right
Bucket Digging Force
4520 lb
Ground Pressure
3.8-4.1 psi
Lift Capacity
See full spec sheet
Travel Speed
2.7 mph
Max Dig Depth
8' 2"
Max Dump Height
9' 7"
Max Reach
14 ft
Driveline
Track
Dimensions & Weight
Ground Clearance
11 in
Height
98 in
Length
78 in
Operating Weight
6306-6636 lb
Size Class
1-4 Ton
Weight Class
3.5 t
Width
58 in
Capacities
Hydraulic Tank
14.5 gal
Fuel Tank
7.9 gal
Hydraulic System
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
CX30C
Type
Compact Excavator
Size Class
1-4 Ton
Product Dimensions & Weight
Length
165.00 in
Width
61.00 in
Height
98.00 in
Weight
6636.00 lbs
