Product Description

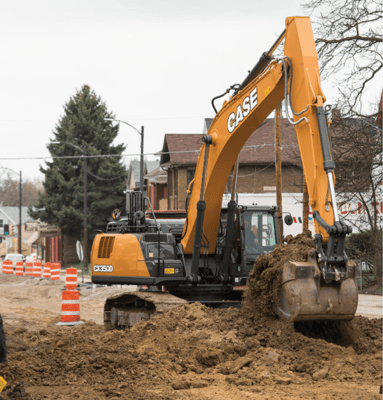

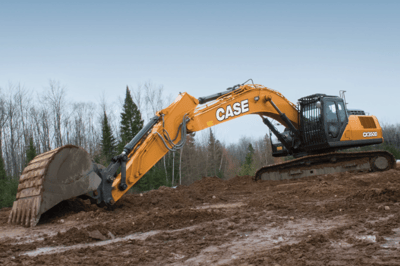

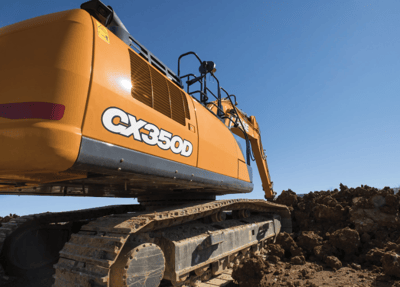

MEET THE CX350D EXCAVATOR
Whether you’re digging miles of pipeline trench, clearing land for a new development or burrowing for bedrock, the CASE CX350D is a machine ready to get down to business. It’s loaded with 268 horses and puts out over 56,000 lbs. of bucket breakout force. With its precision performance, you can do both heavy cutting and final site prep alike. The versatility and fast cycle times will be appreciated by your bottom line. The cab is a pleasure, offering lots of room, ergonomic design and a 7-in. LCD screen with info aplenty. And with superior fuel economy, it’s a machine that will turn dirt into dough.

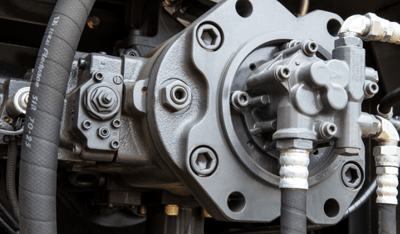

INTELLIGENT HYDRAULICS

The CASE Intelligent Hydraulic System (CIHS) actively manages hydraulic power throughout lift/dump and dig/curl movements to maximize speed and efficiency while reducing fuel consumption by minimizing unnecessary flow.
PERFORMANCE LEVEL PREFERENCE

The D Series excavators come with three power modes to tailor performance and fuel efficiency to various applications: Automatic (A) balances power and fuel economy with continuous Power Boost, Heavy (H) boosts RPMs for quicker cycle times during loading, and Speed Priority (SP) delivers maximum RPMs and hydraulic flow for demanding attachments. This versatility ensures operators can optimize performance for any task.
MORE STANDARD FEATURES
- Standard multi-function auxiliary hydraulics to improve machine versatility.
- Standard free swing improves craning, laying or lifting offset loads.
- ROPS-certified cab with outstanding visibility, featuring standard rear-view and side-view cameras and optional CASE Max View display to provide the operator with 270-degree visibility.
- Viscous cab mounts reduce cab vibration and noise.
- High-back, heated seat with air suspension and multiple adjustment options allow for all-day operator comfort.

Specs
Additional Specs | |
---|---|
Air Conditioning | Standard |
Cab Enclosure | Standard |
Tail Swing | 11' 8" |
Operator Station | ROPS, Enclosed Cab |
Engine | |
---|---|
Displacement | 475 cu in |
Emissions Tier (EPA) | Tier 4 |
Engine Model | Isuzu AQ-6HK1X |
Fuel Type | Ultra-low sulfur fuel, B5 biodiesel tolerant |
Gross HP | 268 hp |
No. Of Cylinders | 6 |
Turbocharged Engine | Yes |
Performance | |
---|---|
Arm Digging Force | 31473-43770 lb |
Bucket Digging Force | 51639 lb |
Ground Pressure | 7.5-7.7 psi |
Lift Capacity | See full spec sheet |
Travel Speed | 3.4 mph |
Max Dig Depth | 24' 1" |
Max Dump Height | 23' 9" |
Max Reach | 34' 1" |
Driveline | Track |
Dimensions & Weight | |
---|---|
Ground Clearance | 19 in |
Height | 137 in |
Height with Operator Cab | 125 in |
Length | 237 in |
Operating Weight | 82483 lb |
Size Class | 20-40 Ton |
Weight Class | 41 t |
Width | 119 in |
Capacities | |
---|---|
DEF | 40.2 gal |
Hydraulic Tank | 46.2 gal |
Fuel Tank | 153.2 gal |
Hydraulic System | |
---|---|
Hydraulic System | Open center |
Transmission | |
---|---|
Transmission | Hydraulic Drive |
Make/Model | |
---|---|
Model | CX350D |
Type | Large Excavator |
Size Class | 20-40 Ton |
Product Dimensions & Weight | |
---|---|
Length | 237.00 in |
Width | 134.00 in |
Height | 137.00 in |
Weight | 82483.00 lbs |
