Case Construction CX42D Mini Excavator

Case Construction CX42D.jpg

Product Description

Case Construction CX42D excavator.png

MEET THE CX42D EXCAVATOR

This 4.2 metric ton CX42D mini excavator is the only zero tailswing mini excavator in its size class — allowing it to get more up close and personal to its work than any other comparable mini excavator. It also delivers a high level of feature standardization with excellent options to further improve performance, and an automotive-style experience in the cab to make this a truly operator-first machine. All with standard auxiliary hydraulics that makes this a powerful platform for attachments so that you can expand your services and pump up your profitability.

TURTLE & RABBIT

Case Construction CX42D two speed.png
CASE mini excavators automatically downshift to increase torque when traveling on slopes or in rough conditions, and then automatically shift back up on smooth terrain. This provides consistent speeds around a jobsite without the need for operator adjustment.

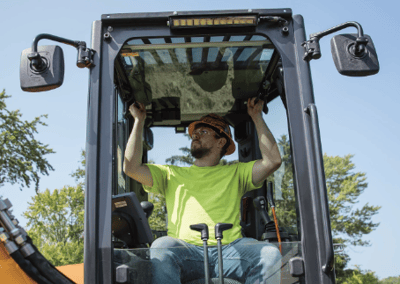

INSIDE THE CAB

Case Construction CX42D cab.png
The machine features a fully adjustable suspension seat, height-adjustable armrests, and heat, A/C, and Bluetooth radio, with ergonomically positioned boom swing controls and a pattern selector for SAE and ISO pattern changeover. Visibility is enhanced by a low engine cover, standard LED lighting, and ample windows, while a 7-inch monitor provides extensive machine information and settings.

Specs

Additional Specs
Cab Enclosure
Optional
Tail Swing
2' 10"
Tail Swing Type
Zero
Operator Station
ROPS
Engine
Displacement
111.4 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Kubota D1803
Fuel Type
Diesel
Gross HP
43.3 hp
No. Of Cylinders
3
Performance
Arm Digging Force
4406-4946 lb
Boom Swing Angle Left/Right
71 degrees left/56 degrees right
Bucket Digging Force
9667 lb
Ground Pressure
4.1-4.3 psi
Lift Capacity
See full spec sheet
Travel Speed
2.8 mph
Max Dig Depth
10' 1"
Max Dump Height
12 ft
Max Reach
16' 5"
Driveline
Track
Dimensions & Weight
Ground Clearance
11.4 in
Height
99 in
Length
89 in
Operating Weight
9259-10251 lb
Size Class
4-8 Ton
Weight Class
5 t
Width
67 in
Capacities
Hydraulic Tank
17.2 gal
Fuel Tank
15.9 gal
Hydraulic System
Hydraulic System
Load Sensing closed center w/Flow Sharing control valve
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
CX42D
Type
Compact Excavator
Size Class
4-8 Ton
Product Dimensions & Weight
Length
209.00 in
Width
69.00 in
Height
99.00 in
Weight
10251.00 lbs
