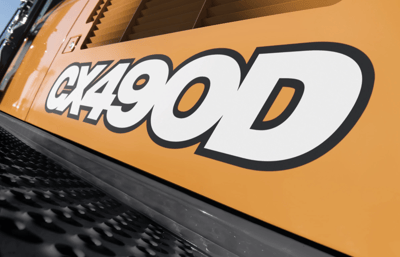

Case Construction CX490D Large Excavator

Case Construction CX490D.jpg

Product Description

Case Construction CX490D excavator.png

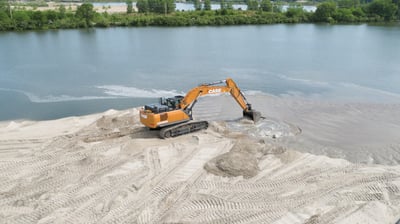

MEET THE CX490D EXCAVATOR

When the job calls for doing more, this is the machine that delivers more – the CASE CX490D. It starts with a 362 hp powerplant. It grunts out 60,700 lbs. of bucket breakout force. You could dig a canyon with that muscle. There are three power modes to customize performance and save fuel. There’s even more fuel saving thanks to the fine-tuned engine and the CASE Intelligent Hydraulic System that adjusts operation depending on the load. The free swing improves craning, laying and lifting. And the cab is loaded with more, from roominess to ergonomic controls. So, fire it up. There’s always more to do.

INTELLIGENT HYDRAULICS

Case Construction CX245D hydraulics.png
The CASE Intelligent Hydraulic System (CIHS) actively manages hydraulic power throughout lift/dump and dig/curl movements to maximize speed and efficiency while reducing fuel consumption by minimizing unnecessary flow.

ENGINE SOLUTION

Case Construction E Series engine.png
CASE excavators meet Tier 4 Final standards with a selective catalytic reduction (SCR) solution that reduces emissions, runs cooler, and increases fuel efficiency without sacrificing power. With no diesel particulate filter (DPF) and no regeneration, there's no DPF maintenance or downtime.

STANDARD FEATURES

  • Standard multi-function auxiliary hydraulics to improve machine versatility.
  • Standard free swing improves craning, laying or lifting offset loads.
  • ROPS-certified cab with outstanding visibility, featuring standard rear-view and side-view cameras and optional CASE Max View display to provide the operator with 270-degree visibility.
  • Viscous cab mounts reduce cab vibration and noise.
  • High-back, heated seat with air suspension and multiple adjustment options allow for all-day operator comfort.
Case Construction CX490 D.jpg

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
12' 3"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
600 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Isuzu AQ-6UZ1X
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
362 hp
No. Of Cylinders
6
Turbocharged Engine
Yes
Performance
Arm Digging Force
35500-55300 lb
Bucket Digging Force
55500 lb
Ground Pressure
8.3 psi
Lift Capacity
See full spec sheet
Travel Speed
3.3 mph
Max Dig Depth
25' 4"
Max Dump Height
25' 3"
Max Reach
36' 5"
Driveline
Track
Dimensions & Weight
Ground Clearance
21 in
Height
144 in
Length
254 in
Operating Weight
109300 lb
Size Class
40-90 Ton
Weight Class
54.5 t
Width
120 in w/o catwalks
Capacities
DEF
40 gal
Hydraulic Tank
61 gal
Fuel Tank
172 gal
Hydraulic System
Hydraulic System
Open center
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX490D
Type
Large Excavator
Size Class
40-90 Ton
Product Dimensions & Weight
Length
254.00 in
Width
144.00 in
Height
144.00 in
Weight
109300.00 lbs
