Case Construction CX50D Mini Excavator

Case Construction CX50D studio.png

Product Description

Case Construction CX50D studio.png

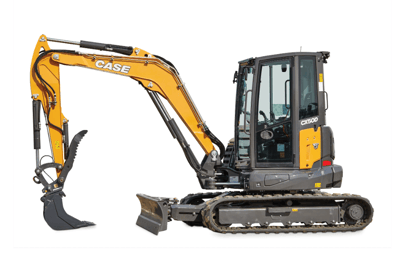

MEET THE CX50D EXCAVATOR

The new CASE CX50D mini excavator is the premier zero tailswing machine in its size class. Yes, this mini tough guy, coming in at 5.0 metric tons, lets you get nice and cozy with buildings and other structures while still crushing it in the power department. With the standard auxiliary hydraulics, you can use all kinds of attachments, upping the versatility. So, hop in and sit down. See how the profit potential feels.

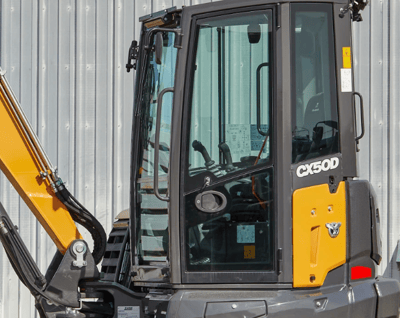

INSIDE THE CAB

Case Construction CX50D cab.png
The machine features a fully adjustable suspension seat, height-adjustable armrests, and heat, A/C, and Bluetooth radio, with ergonomically positioned boom swing controls and a pattern selector for SAE and ISO pattern changeover. Visibility is enhanced by a low engine cover, standard LED lighting, and ample windows, while a 7-inch monitor provides extensive machine information and settings.

BIG ON PERFORMANCE

Case Construction CX50D dig.png

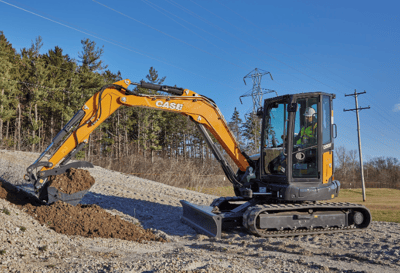

The CX50D Excavator is equipped with rugged rubber belt tracks, with an option to switch to steel tracks, and offers dynamic two-speed travel with auto shift and a versatile backfill blade with float. For added versatility, choose the long arm option extending the upper structure from 4 feet 7 inches to 5 feet 5 inches.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
3' 1"
Tail Swing Type
Zero
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
135.2 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Perkins 404J-E22T
Fuel Type
Diesel
Gross HP
58.7 hp
No. Of Cylinders
4
Performance
Arm Digging Force
4765.9-5283 lb
Boom Swing Angle Left/Right
71 degrees left/56 degrees right
Bucket Digging Force
9666.8 lb
Ground Pressure
4 psi
Lift Capacity
See full spec sheet
Travel Speed
2.8 mph
Max Dig Depth
10' 11"
Max Dump Height
12' 10"
Max Reach
17' 3"
Driveline
Track
Dimensions & Weight
Ground Clearance
11 in
Height
101 in
Length
96 in
Operating Weight
10912 lb
Size Class
4-8 Ton
Weight Class
5.5 t
Width
73 in
Capacities
Hydraulic Tank
22.5 gal
Fuel Tank
19.8 gal
Hydraulic System
Hydraulic System
Closed center load sensing w/Flow Sharing system
Auxiliary Pressure
493 psi
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
CX50D
Type
Compact Excavator
Size Class
4-8 Ton
Product Dimensions & Weight
Length
220.00 in
Width
75.00 in
Height
101.00 in
Weight
11574.00 lbs
