Case Construction CX57C Mini Excavator

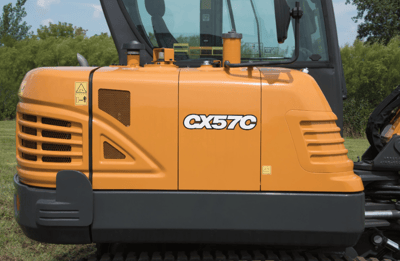

Case Construction CX57C.jpg

Product Description

Case Construction CX57C excavator.png

MEET THE CX57C EXCAVATOR

The CX57C is a “large” mini excavator with industry leading horsepower, capable of handling the demands of heavier excavation operations. Its design stands apart from the rest of the C Series line because it features a conventional tailswing design with a large counterweight, giving it power and performance comparable to a larger class – all while still taking up a relatively small footprint. Standard performance features and a standard deluxe cab with a 7” LCD touch screen monitor make the CX57C a powerful, versatile and intuitive mini excavator.

HEAVY-DUTY PERFORMANCE

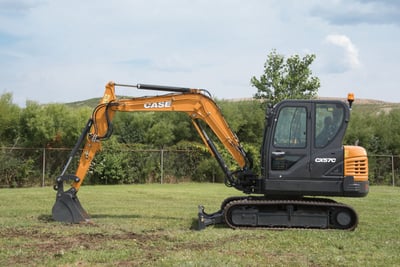

Case Construction CX57 C.jpg
The CX57C Excavator combines a conventional radius tail swing with versatile track options—rubber or steel—and automatic two-speed travel for smooth operation. With a robust 66.9 horsepower engine, a standard 5' 3" arm, and an optional long arm, it delivers a powerful 7,190 lbf-ISO arm digging force for tackling demanding projects.

OPERATOR BLISS

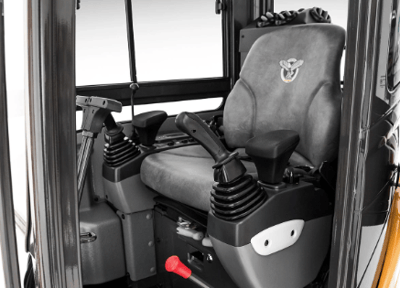

Case Construction CX37C cab.png
The machine features a fully adjustable suspension seat, height-adjustable armrests, and heat, A/C, and Bluetooth radio, with ergonomically positioned boom swing controls and a pattern selector for SAE and ISO pattern changeover. Visibility is enhanced by a low engine cover, standard LED lighting, and ample windows, while a 7-inch monitor provides extensive machine information and settings.

Specs

Additional Specs
Cab Enclosure
Standard
Tail Swing
5' 5"
Tail Swing Type
Conventional radius
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
203 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Yanmar 4TNV98C
Fuel Type
Diesel
Gross HP
66.9 hp
No. Of Cylinders
4
Performance
Arm Digging Force
6460-7190 lb
Boom Swing Angle Left/Right
80 degrees left/50 degrees right
Bucket Digging Force
9550 lb
Ground Pressure
4.8 psi
Lift Capacity
See full spec sheet
Travel Speed
2.5 mph
Max Dig Depth
12' 6"
Max Dump Height
13' 3"
Max Reach
19 ft
Driveline
Track
Dimensions & Weight
Ground Clearance
15 in
Height
100 in
Length
100 in
Operating Weight
12270-12320 lb
Size Class
4-8 Ton
Weight Class
6 t
Width
73 in
Capacities
Hydraulic Tank
31.7 gal
Fuel Tank
31.7 gal
Hydraulic System
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
CX57C
Type
Compact Excavator
Size Class
4-8 Ton
Product Dimensions & Weight
Length
232.00 in
Width
76.00 in
Height
100.00 in
Weight
12320.00 lbs
