Case Construction CX75C SR Midi Excavator

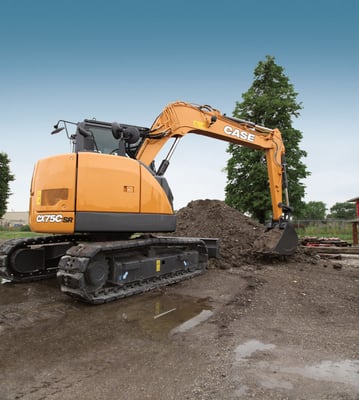

Case Construction CX75CSR.jpg

Product Description

Case Construction CX75C SR excavator.png

MEET THE CX75C SR EXCAVATOR

Designed with you in mind, the CASE CX75C SR mid-sized excavator boosts cycle times, digging power, and fuel efficiency with a first-in-class Tier 4 Final solution. The minimum swing radius design is perfect for working in more confined areas, such as along buildings and on roadsides. The large cab on the CX75C SR provides operators with more foot space and elbowroom.

BOOM CONFIGURATIONS

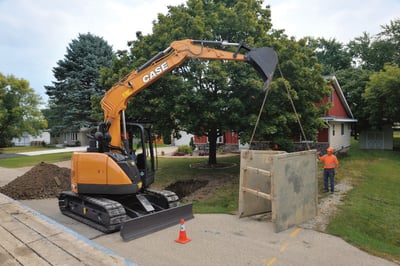

Case Construction CX75C SR.jpg
There are three boom configurations – an optional offset boom that allows for digging directly against the side of buildings or other obstructions and increases the working area without the need to reposition, a standard boom that can operate in only 9 ft. 7 in. of space and a swing boom that offers generous swing angles – left 80 degrees and right 45 degrees.

THREE OPERATING MODES

Case Construction CX75C SR Excavator.jpg
Three operating modes – auto, heavy and speed priority – allow operators to match the engine throttle and RPM requirements for your specific task. And the standard dozer blade allows easy backfilling while also providing excellent stability.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
4' 3"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
133 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Isuzu AP-4LE2X
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
53.6 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Arm Digging Force
7600-8880 lb
Bucket Digging Force
12800 lb
Ground Pressure
5.1 psi
Lift Capacity
See full spec sheet
Travel Speed
3.2 mph
Max Dig Depth
13' 7"
Max Dump Height
17' 4"
Max Reach
24' 2"
Driveline
Track
Dimensions & Weight
Ground Clearance
14 in
Height
113 in
Height with Operator Cab
109 in
Length
134 in
Operating Weight
17400 lb
Size Class
8-12 Ton
Weight Class
8.5 t
Width
89 in
Capacities
Hydraulic Tank
13.5 gal
Fuel Tank
31.7 gal
Hydraulic System
Hydraulic System
Open center
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
CX75C SR
Type
Compact Excavator
Size Class
8-12 Ton
Product Dimensions & Weight
Length
227.00 in
Width
91.00 in
Height
109.00 in
Weight
17400.00 lbs
