Case Construction CX80C Midi Excavator

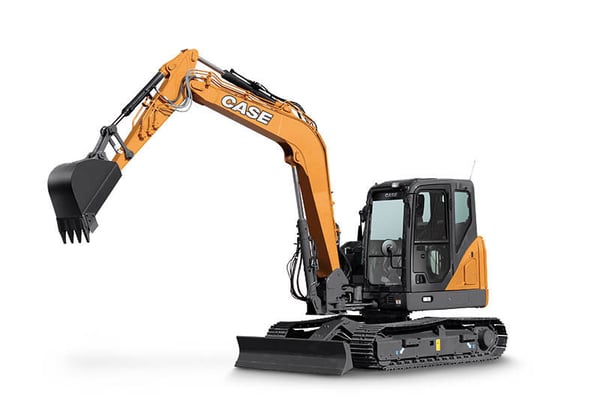

Case Construction CX80C.jpg

Product Description

Case Construction CX80C.jpg

MEET THE CX80C EXCAVATOR

The CASE CX80C might be mid-sized on the outside. But look deeper, and you’ll see this one has the heart and muscle of a larger digger. The 53.6 hp engine has three work modes and chomps down with 12,800 lbs. of breakout force. So, you can trench, move pipe or bust through rocky soil. It also features simplified engine emissions so it doesn’t hurt your pocket. The cab is impressive. It’s the size normally found on a larger excavator, and it’s full of adjustability and temp control features. And with an easy centralized excavator greasing system, this one’s ready to dig ’til your heart’s content.

THREE OPERATING MODES

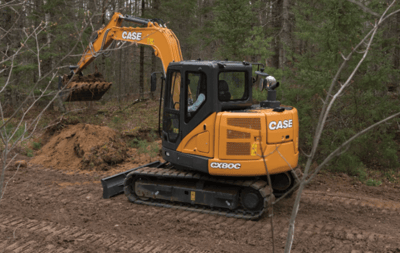

Case Construction CX80C excavator.png
Three operating modes – auto, heavy and speed priority – allow operators to match the engine throttle and RPM requirements for your specific task. And the standard dozer blade allows easy backfilling while also providing excellent stability.

BOOM CONFIGURATIONS

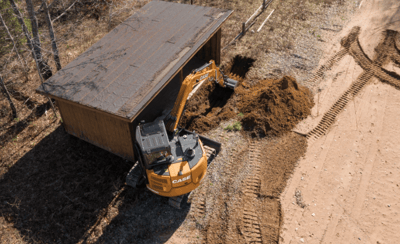

Case Construction CX80C top view.png
Three boom configurations – an optional offset boom that allows for digging directly against the side of buildings or other obstructions and increases the working area without the need to reposition, a standard boom that can operate in only 9 ft. 7 in. of space and a swing boom that offers generous swing angles – left 80 degrees and right 45 degrees.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
5' 6"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
133 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Isuzu AP-4LE2X
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
53.6 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Arm Digging Force
7600-8880 lb
Bucket Digging Force
12800 lb
Ground Pressure
5.5 psi
Lift Capacity
See full spec sheet
Travel Speed
3.2 mph
Max Dig Depth
13' 9"
Max Dump Height
14' 10"
Max Reach
21' 7"
Driveline
Track
Dimensions & Weight
Ground Clearance
14 in
Height
109 in
Height with Operator Cab
109 in
Length
134 in
Operating Weight
18900 lb
Size Class
8-12 Ton
Weight Class
9.5 t
Width
89 in
Capacities
Hydraulic Tank
13.5 gal
Fuel Tank
31.7 gal
Hydraulic System
Hydraulic System
Open center
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX80C
Type
Compact Excavator
Size Class
8-12 Ton
Product Dimensions & Weight
Length
263.00 in
Width
91.00 in
Height
109.00 in
Weight
18900.00 lbs
