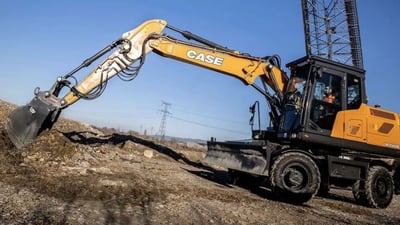

Case Construction WX140E Wheeled Excavator

Case Construction WX140E .jpg

Product Description

Case Construction WX140E bucket.jpg

MEET THE WX140E EXCAVATOR

It all starts with an eager, job-crushing 170 hp engine featuring four user modes, including one customized by you, to let you dial in the performance, power, fuel efficiency, engine speed, idle speed, pump power, and flow you need to rumble through the job. Travel up to 25-mph with the hydrostatic transmission with standard cruise control and ride control for a smoother journey. Features such as large glass surfaces for exceptional visibility, air-suspension, heated, finely adjustable seat, 8-inch touchscreen display, and auto braking provide operator comfort and confidence while you dig. Choose from a variety of equipment such as four lower-frame options, dozer blade, stabilizer options, monoboom, and hydraulic low flow circuit to name a few.

PRE-SET POWER

Case Construction wheeled excavator.jpg
The WX140E wheeled excavator is powered by a 170 hp engine and feature an EGR-free system with automatic after-treatment cleaning. It offers three pre-set power modes—Power, Standard, and Eco—and a customizable mode for tailored performance.

BUILT TO GO

Case Construction wheeled excavator in motion.jpg
These machines feature a hydrostatic transmission for speeds up to 25 mph, with standard cruise control and ride control for a smoother ride. They also come equipped with a trailer hitch for hauling, twin tires to minimize downtime, and heavy-duty axles for durability.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
7' 1"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
274.6 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Cummins B4.5
Fuel Type
Ultra-low sulfur diesel, B7 biodiesel fuel certified
Gross HP
170 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Arm Digging Force
12814-17534 lb
Bucket Digging Force
23154 lb
Lift Capacity
See full spec sheet
Travel Speed
24.8 mph
Max Dig Depth
16' 9"
Max Dump Height
21 ft
Max Reach
27' 3"
Driveline
4WD
Dimensions & Weight
Ground Clearance
15 in
Height
157 in
Length
305 in w/attachment
Operating Weight
36938 lb
Weight Class
18.5 t
Width
98 in
Capacities
DEF
12.7 gal
Hydraulic Tank
32 gal
Fuel Tank
66 gal
Hydraulic System
Auxiliary Pressure
566 psi
Transmission
Transmission
Hydrostatic (HST), Powershift
Transmission Range
2-Speed
Make/Model
Model
WX140E
Type
Wheeled Excavator
Product Dimensions & Weight
Length
307.00 in
Width
100.00 in
Height
156.00 in
Weight
36938.00 lbs
