Case Construction WX155E SR Wheeled Excavator

Case Construction wheeled excavator in motion.jpg

Product Description

Case Construction wheeled excavator.jpg

MEET THE WX155E SR EXCAVATOR

Those needing some digging might brought to roadsides or more confined areas will want to check out the built-from-the-ground-up, CASE WX155E SR. It’s a new entry into the top end of the 14- to 16-ton wheeled excavator category, and it gives you plenty of power, 170 horses, in a minimum swing design. That said, it goes maximum on operator comfort, control and mobility with features such as large glass surfaces, air-suspension, finely adjustable seat, 8-inch touchscreen display, optional push-to-start button, and auto braking. So, you can quickly roll through tough, tight jobs with ease and comfort.

BUILT TO GO

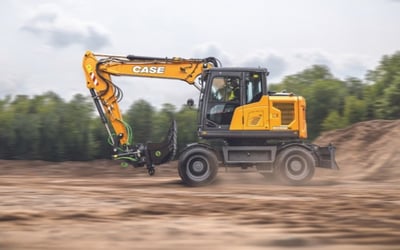

Case Construction wheeled excavator in motion.jpg
These machines feature a hydrostatic transmission for speeds up to 25 mph, with standard cruise control and ride control for a smoother ride. They also come equipped with a trailer hitch for hauling, twin tires to minimize downtime, and heavy-duty axles for durability.

SAFETY FEATURES

Case Construction wheeled excavator camera.jpg
All CASE wheeled excavators feature standard rear radar object detection, a CASE maximum view monitor with 360-degree camera visibility, and intelligent moving object detection. They also include a swing lock for enhanced safety, hose burst check valves with an overload warning system, and optional cab protection.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
5' 11"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
274.6 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Cummins B4.5
Fuel Type
Ultra-low sulfur diesel, B7 biodiesel fuel certified
Gross HP
170 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Arm Digging Force
14387-17534 lb
Bucket Digging Force
23154 lb
Lift Capacity
See full spec sheet
Travel Speed
22 mph
Max Dig Depth
16' 10"
Max Dump Height
20' 11"
Max Reach
27' 6"
Driveline
4WD
Dimensions & Weight
Ground Clearance
15 in
Height
149 in
Length
305 in w/attachment
Operating Weight
40458 lb
Weight Class
20 t
Width
99 in
Capacities
DEF
12.7 gal
Hydraulic Tank
27.2 gal
Fuel Tank
53 gal
Hydraulic System
Auxiliary Pressure
566 psi
Transmission
Transmission
Hydrostatic (HST), Powershift
Transmission Range
2-Speed
Make/Model
Model
WX155E SR
Type
Wheeled Excavator
Product Dimensions & Weight
Length
294.00 in
Width
100.00 in
Height
157.00 in
Weight
40458.00 lbs
