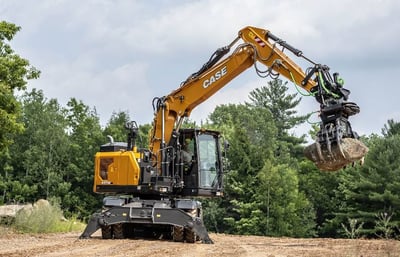

Case Construction WX160E Wheeled Excavator
New
Case Construction WX160E Wheeled Excavator
Model: WX160E
- 18' 7" max dig depth (standard 2-piece boom)
- 170 engine horsepower
- 43,142 lb. rated operating weight
Product Description
MEET THE WX160E EXCAVATOR
The new CASE WX160E is the nimble middleweight that gets the job done like a beefy heavyweight. After all, it offers fleet-footed road speed, knockout power and jobsite productivity that can’t be beat, all in an extremely mobile set up. And with its top-class comfort and control, it’ll keep operators punching at peak efficiency job after job. Hydraulic, operator environment, upper and undercarriage structure, and front end equipment options available.
PRE-SET POWER
BUILT TO GO
Specs
| Additional Specs | |
|---|---|
| Air Conditioning | Standard |
| Cab Enclosure | Standard |
| Tail Swing | 7' 5" |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Displacement | 274.6 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Model | Cummins B4.5 |
| Fuel Type | Ultra-low sulfur diesel, B7 biodiesel fuel certified |
| Gross HP | 170 hp |
| No. Of Cylinders | 4 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Arm Digging Force | 15062-21806 lb |
| Bucket Digging Force | 25852 lb |
| Lift Capacity | See full spec sheet |
| Travel Speed | 24.8 mph |
| Max Dig Depth | 18' 5" |
| Max Dump Height | 20' 10" |
| Max Reach | 28' 11" |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 15 in |
| Height | 155 in |
| Length | 324 in w/attachment |
| Operating Weight | 43142 lb |
| Weight Class | 21.5 t |
| Width | 98 in |
| Capacities | |
|---|---|
| DEF | 12.7 gal |
| Hydraulic Tank | 32 gal |
| Fuel Tank | 66 gal |
| Hydraulic System | |
|---|---|
| Auxiliary Pressure | 566 psi |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST), Powershift |
| Transmission Range | 2-Speed |
| Make/Model | |
|---|---|
| Model | WX160E |
| Type | Wheeled Excavator |
| Product Dimensions & Weight | |
|---|---|
| Length | 328.00 in |
| Width | 100.00 in |
| Height | 127.00 in |
| Weight | 43142.00 lbs |
