Case Construction WX210E Wheeled Excavator

Case Construction wheeled excavator.jpg

Product Description

Case Construction wheeled excavator.jpg

MEET THE WX210E EXCAVATOR

Settle into the seat of the CASE WX210E wheeled excavator, and you’ve got 21 tons of self-deploying, fast-moving, tool-carrying, high-tech, job-crushing power at your command. Simply put the wheels in motion, get the bucket into some dirt and see where it takes you. Probably to the top of a mountain of profits, where the view is always better. It’s pushing out 170 horsepower, and it kicks out massive breakout forces and lifting and craning capacities. So, you can clear land or break through rocky terrain like it was butter. The control is precise, thanks to the advanced, Case industry-best hydraulics.

BUILT TO GO

Case Construction wheeled excavator in motion.jpg
These machines feature a hydrostatic transmission for speeds up to 25 mph, with standard cruise control and ride control for a smoother ride. They also come equipped with a trailer hitch for hauling, twin tires to minimize downtime, and heavy-duty axles for durability.

ULTIMATE CAB

Case Construction wheeled excavator cab.jpg

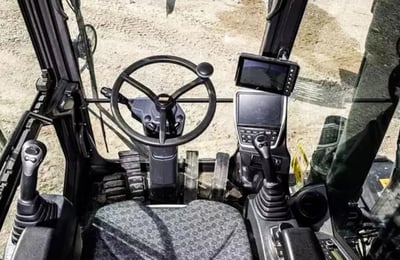

The unmatched cab features large glass surfaces and an 8-inch touchscreen display with a separate camera display for exceptional visibility. They also include an air-suspension heated seat, an optional smart ignition key with a push-to-start button, and a standard Auto Brake feature for enhanced security and operator efficiency.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
9 ft
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
408 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Cummins B4.5
Fuel Type
Ultra-low sulfur diesel, B7 biodiesel fuel certified
Gross HP
170 hp
No. Of Cylinders
6
Turbocharged Engine
Yes
Performance
Arm Digging Force
24032-28438 lb
Bucket Digging Force
33946 lb
Lift Capacity
See full spec sheet
Travel Speed
24 mph
Max Dig Depth
21' 1"
Max Dump Height
23' 6"
Max Reach
32' 9"
Driveline
4WD
Dimensions & Weight
Ground Clearance
14 in
Height
158 in
Length
378 in w/attachment
Operating Weight
53649 lb
Weight Class
27 t
Width
100 in
Capacities
DEF
12.7 gal
Hydraulic Tank
43.6 gal
Fuel Tank
82 gal
Hydraulic System
Auxiliary Pressure
566 psi
Transmission
Transmission
Hydrostatic (HST), Powershift
Transmission Range
2-Speed
Make/Model
Model
WX210E
Type
Wheeled Excavator
Product Dimensions & Weight
Length
363.00 in
Width
100.00 in
Height
157.00 in
Weight
53649.00 lbs
