Kubota KX030-4 Compact Excavator

Kubota K X030 4

Product Description

Kubota Excavator #1 In The World.png

MEET THE KX030-4 EXCAVATOR

The KX030-4 with 24.7 horsepower gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive. Available with Cab or ROPS.

*Kubota is the world’s #1 selling compact excavator for 20 years. According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

MAINTENANCE & SAFETY

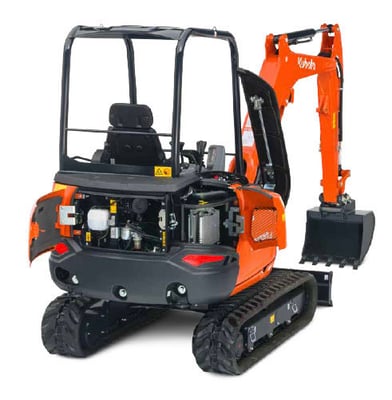

Kubota KX030-4 maintenance.jpg
With the KX030-4, operators can work with confidence knowing they are protected by the ROPS/OPG on both the open station or optional enclosed cab. Furthermore, the engine compartment is ergonomically organized with easy access to the radiator and engine oil cooler to make routine maintenance and inspections a breeze.

KUBOTA ENGINE

Kubota KX030-4 (1).png
The KX030-4 is powered by a proven Kubota tier 4 final diesel engine. The engine power is matched with the abilities of the hydraulic system to maximize digging and lifting performance. Operators also benefit from the minimal noise and vibration.

SUPERIOR PERFORMANCE

The KX030-4 gets the job done where larger excavators can't maneuver. Powerful breakout forces combined with the ability to simultaneously operate the pilot controlled hydraulic functions make the work day more productive.

  • Powerful breakout force
  • Simultaneous operation
  • Thumb bracket and relief valves
  • Proportional flow control of auxiliary circuit
  • Third-line hydraulic return

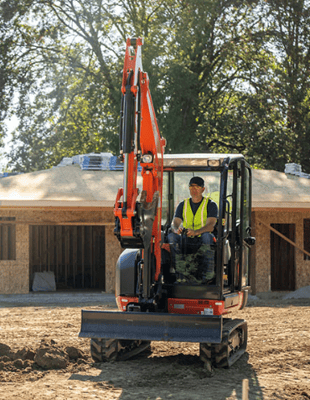

Kubota KX030-4 Excavator.jpg

Specs

Additional Specs
Operator Station
Canopy, Enclosed Cab
Engine
Displacement
91.4 in³
Emissions Tier (EPA)
Tier 4
Engine Model
V1505-BH
Fuel Type
Diesel
Gross HP
24.7 hp
Performance
Arm Digging Force
3284 lbs
Bucket Digging Force
6924 lbs
Ground Pressure
3.9 psi (Canopy), 4.0 (Cab)
Travel Speed
High: 2.7 mph, Low: 1.7 mph
Driveline
Track
Dimensions & Weight
Ground Clearance
11 in
Height
95 in
Operating Weight
6272 lbs Canopy, 6426 lbs Cab
Size Class
1-4 Ton
Capacities
Fuel Tank
12.7 gal
Hydraulic System
Auxiliary Std Flow
13.1 gpm
Make/Model
Model
KX030-4
Type
Compact Excavator
Size Class
1-4 Ton
