Kubota KX040-4 Compact Excavator

Kubota K X040 4 rops

Product Description

Kubota Excavator #1 In The World.png

MEET THE KX040-4 EXCAVATOR

Digging isn’t easy, but the Kubota KX040-4 optional 6-in-1 Blade will make it feel like it is. Even when heavily loaded, the KX040-4 won’t slow down, thanks to its powerful breakout force and 40.4 horses. The KX040-4 raises the standard in 4-ton excavator comfort with a spacious cab that rivals 5-ton excavators. The luxurious cab features a wider entrance, greater legroom and a deluxe seat. Operability is greatly enhanced with more easy-to-use features than ever before. Versatility is unmatched with the hydraulic 6-in-1 blade and angle blade models.

*Kubota is the world’s #1 selling compact excavator for 20 years. According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

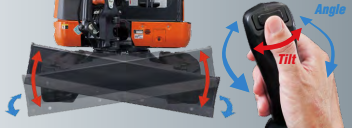

6 in 1 Blade

Kubota KX040-4 6 in 1.png
Kubota's hydraulic 6-in-1 Blade can be angled right and left, and now, tilted as well. This blade enables six different positions: neutral, float up, left-end-up, right-end-up, left-end-forward and right-end-forward. This feature makes landscaping, shaping, and backfilling work incredibly easy, even on inclines and uneven terrain, making you more productive and more efficient.

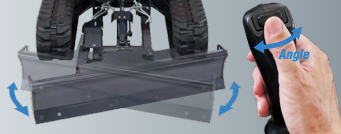

ANGLE BLADE OPTION

Kubota KX040-4 Angle Blade.png
Save time and work more efficiently. With a simple movement of the blade lever, the hydraulic angle blade can be angled to the right or left to push soil to
the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

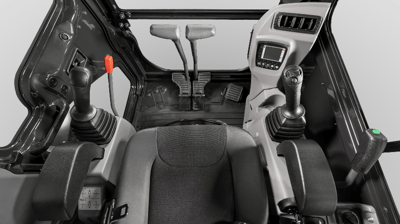

OPERATOR EXPERIENCE

  • Wider cab entrance 1'10.4" with greater leg room, for easy entry and exit and comfortability in the cab
  • User-friendly operator-facing digital panel that increases visibility and provides easy-to-read indicators and alerts
  • Deluxe suspension seat, cup holder, wrist rest, easy-open front side window and air conditioning reducing strain and operator fatigue
  • One-sided engine maintenance for easy access to vital components
Kubota KX040-4 Cab.png

Specs

Additional Specs
Operator Station
Canopy, Enclosed Cab
Engine
Displacement
111.4 in³
Emissions Tier (EPA)
Tier 4
Engine Model
Kubota D1803-CR-TE4
Fuel Type
Diesel
Gross HP
40.4 hp
Performance
Arm Digging Force
4112 lbs
Bucket Digging Force
9535 lbs
Ground Pressure
4.53-5.10 psi
Travel Speed
High: 3.1 mph, Low: 1.7 mph
Driveline
Track
Dimensions & Weight
Ground Clearance
12.99 in
Height
97.8 in
Operating Weight
9195-10360 lbs
Size Class
4-8 Ton
Capacities
Fuel Tank
16.9 gal
Hydraulic System
Auxiliary Std Flow
9.8-17.2 gpm
Make/Model
Model
KX040-4
Type
Compact Excavator
Size Class
4-8 Ton
Product Dimensions & Weight
Length
200.20 in
Width
66.90 in
Height
97.80 in
Weight
10360.00 lbs
