Product Description

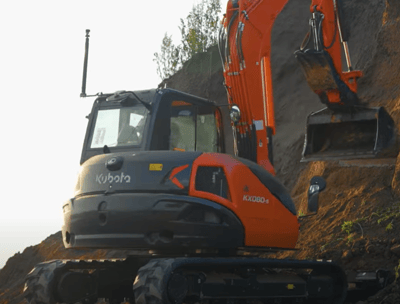

MEET THE KX080-5 EXCAVATOR
The Kubota KX080-5 Compact Excavator boasts a powerful 66.6 horsepower engine and an impressive 14,660 lb bucket breakout force, making it ideal for heavy-duty tasks. Available with rubber or steel tracks, it offers versatility for various terrains. Enhanced with a 7" full-color LCD screen, rear view camera, and keyless start, this excavator combines advanced technology with superior performance for maximum efficiency and convenience.
*Kubota is the world’s #1 selling compact excavator for 20 years. According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
OPTIONAL ANGLE BLADE

KEYLESS START

TIGHT TAIL SWING AND COMPACT WIDTH
Thanks to its contoured, tight tail design created by the shorter rear overhang, the KX080-5 has excellent stability, can handle a wider range of loads, and can work in more restrictive spaces. The compact 7’2.6” width of the undercarriage makes it ideal for working in close conditions, and much easier to transport between job sites.

Specs
Additional Specs | |
---|---|
Operator Station | Enclosed Cab |
Engine | |
---|---|
Displacement | 203.3 in³ |
Emissions Tier (EPA) | Tier 4 |
Engine Model | Kubota V3307-CR-TE5 |
Fuel Type | Diesel |
Gross HP | 66.6 hp |
Performance | |
---|---|
Arm Digging Force | 8554 lbs |
Bucket Digging Force | 14660 lbs |
Ground Pressure | 5.29-5.56 psi |
Travel Speed | High: 3 mph, Low: 1.7 mph |
Driveline | Track |
Dimensions & Weight | |
---|---|
Ground Clearance | 14-15.4 in |
Height | 100 in |
Operating Weight | 18520-19620 lbs |
Size Class | 8-12 Ton |
Capacities | |
---|---|
Fuel Tank | 30.4 gal |
Hydraulic System | |
---|---|
Auxiliary Std Flow | 14.7-26.4 gpm |
Make/Model | |
---|---|
Model | KX080-5 |
Type | Compact Excavator |
Size Class | 8-12 Ton |
Product Dimensions & Weight | |
---|---|
Length | 253.90 in |
Width | 86.60 in |
Height | 100.00 in |
Weight | 19620.00 lbs |
