New Holland FP240 Pull-Type Forage Harvester

N H F P240

Product Description

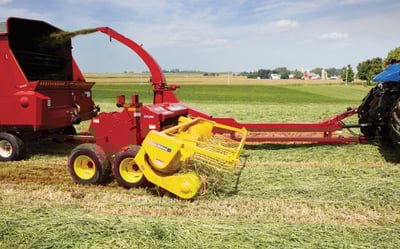

New Holland FR240 hay.jpg

NEW HOLLAND

The FP240 pull type harvester features a 12-knife cutterhead built for uniform cutting length yielding high quality feed. The built-in knife sharpeners and hardened, reversible, easy-to-adjust shearbars make it easy to maintain cutting performance. Lightweight, hinged shielding and exclusive flip-up feedrolls provide easy access to all major components for quick and easy maintenance. Standard electric remote controls for spout, feedrolls and attachment
drives let you control all operations right from your tractor seat.

Specs

Additional Specs
Minimum PTO HP Required
180 hp
Dimensions & Weight
Height with Standard Spout (ft. in. (m))
11' 2"
Length
21' 6"
Tire Size
Standard Single Axle: 14L x 16.1-8PR , Tandem Axle: 11L x 15-6PR
Width
10' 8"
New Holland Headers
Construction
Hardened ductile iron, steel shaft
Harvester Specs
Height with Standard Spout (ft. in. (m))
11' 2"
Knife Sharpener
3" (76 mm) manual, built-in
Number/Type of Knives
12 single-edge hardened alloy
Roll Width (in. (mm))
26-7/8" (682.6)
Roll Diameter
7-7/8 in
Shearbar
Quick adjust, reversible, hard-faced on vertical and horizontal surfaces
Throat Opening (in. (mm))
24-3/8" x 6-5/8" (619.76 x 167.6)
Vertical wheel adjustment (in. (mm))
6" (152)
Make/Model
Model
FP240
Type
Forage Harvester
Blower
Blower Speed
1000 rpm
Cutterhead
Cutterhead, type / speed (rpm)
Cylinder / 850
Cutterhead, Diameter (in. (mm))
21 in
Length Of Cut
3/16" to 7/16" (76.2 to 177.8)
Conditioning Systems
Roll Diameter
7-7/8 in
Roll Speed (rpm)
2650 upper, 2250 lower
Product Dimensions & Weight
Length
258.00 in
Width
128.00 in
Height
134.00 in
Weight
4700.00 lbs
