New Holland FR480 Forage Cruiser
New
New Holland FR480 Forage Cruiser
Model: FR480
- FPT Cursor 13 engine
- 476 max engine horsepower
- Standard crop processor
Product Description

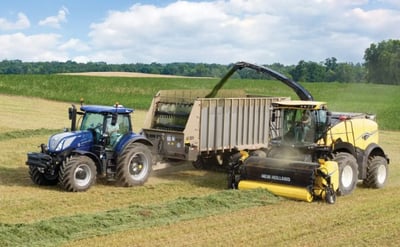

NEW HOLLAND FR480
The FR480 is powered by the FPT Cursor 13 engine and delivers a max engine output of 476 hp. ECOBlue HI-eSCR 2 and MetaLoc technology, combined with the Variflow system keep operating costs low and profits high by delivering fuel efficiency, damage protection, and quick crop changes. In cab features such as the deluxe cloth trimmed heated air-suspension seat with active ventilation, CommandGrip handle, and IntelliView IV monitor contribute to making operating hours more enjoyable.
Specs
| Engine | |
|---|---|
| Engine Make | FPT Cursor 13 |
| Injection System | Common Rail |
| Capacities | |
|---|---|
| AdBlue Capacity gal. | 52 gal |
| Diesel Capacity | 317 gal |
| Transmission | |
|---|---|
| Gearbox | 4-speed |
| Remote Gearshifting | Standard |
| Transmission | Hydrostatic (HST) |
| Harvester Specs | |
|---|---|
| Injection System | Common Rail |
| Roll Diameter | 9.8 in |
| Feeding | |
|---|---|
| Feed opening width (in. (mm)) | 33.9 (860) |
| Feeding System | HydroLoc drive |
| Length Of Cut Adjustment | Infinite |
| Number Of Feed Rolls | 4 |
| Make/Model | |
|---|---|
| Model | FR480 |
| Type | Forage Harvester |
| Blower | |
|---|---|
| Blower Rotor Diameter in. | 20.7 in |
| Blower Rotor Width in. (mm) | 29.5 in |
| Blower Speed | 2119 rpm |
| Cutterhead | |
|---|---|
| Cutterhead Frame Width | 35.4 in |
| Cutterhead Cylinder Width | 34.8 in |
| Cutterhead Diameter (min/ max) | 27.9/27.2 in |
| Cutterhead Speed | 1130 rpm |
| Conditioning Systems | |
|---|---|
| Roll Diameter | 9.8 in |
| Product Dimensions & Weight | |
|---|---|
| Length | 0.00 in |
| Width | 120.30 in |
| Height | 144.40 in |
| Weight | 28775.00 lbs |
