Case Construction 588H Forklift
New
Case Construction 588H Forklift
Model: 588H
- 74 engine horsepower
- 8,000 lb. lift capacity
- 4F x 4R power shuttle transmission
Product Description

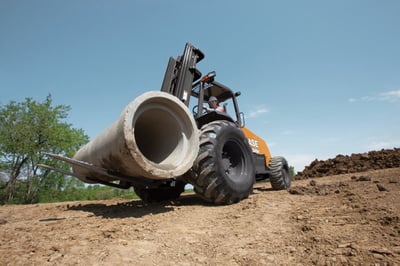

MEET THE 588H FORKLIFT
With fast lifting speeds, roading speeds of up to 24-mph (38.6 km/h), lifting capacities of up to 8,000 lbs. and a slew of unique features that keep loads level and operators comfortable, the high-performance, Tier 4 Final 588H forklift truly does raise the bar. Without a disruptive third mast, this wide-channel, dual-mast design gives it unmatched visibility. The low-profile hood with the Tier 4 Final engine provides a clear view behind the machine. Even at top lift heights, a perforated steel canopy gives operators clear vision without the neck-straining need to lean forward.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 207 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Charged Air |
| Engine Model | FPT F5HFL463D |
| Fuel Injection | Direct high pressure common rail |
| Fuel Type | Diesel |
| Gross HP | 74 hp |
| No. Of Cylinders | 4 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Travel Speed | 24 mph |
| Mast Type | 2 stage roller mast |
| Lift Speed | 106 ft/min |
| Lift Capacity to Full Height | 8000 lb |
| Dimensions & Weight | |
|---|---|
| Backward Mast Tilt | 15 degrees |
| Forward Mast Tilt | 45 degrees |
| Ground Clearance | 10.3 in |
| Height | 125 in |
| Max Fork Height | 180 in |
| Operating Height | 220 in |
| Operating Weight | 16102-16978 lb |
| Wheel base | 84-84.5 in |
| Width | 88 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 18.5 gal |
| Fuel Tank | 31 gal |
| Transmission | |
|---|---|
| Transmission | Power Shuttle |
| Transmission Range | 4F/4R |
| Make/Model | |
|---|---|
| Model | 588H |
| Type | Forklift |
| Product Dimensions & Weight | |
|---|---|
| Length | 205.00 in |
| Width | 88.00 in |
| Height | 125.00 in |
| Weight | 16978.00 lbs |
