New
Kubota DM1017 Disc Mower
New
Kubota DM1017 Disc Mower
Model: DM1017
- 5' 6" Cutting Width
- 3' 9" Transportation Width
- 4 Disc's and 12 Knives
Product Description

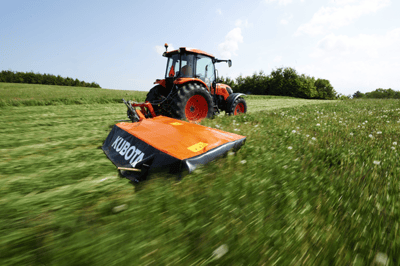

MEET THE DM1017 DISC MOWER
The Kubota DM1017 Disc Mower may be the smallest in its series, but it still brings a dominant 5’ 6” working width. The DM1017 is easy to lift and transport, and even avoids obstacles through spring loaded breakaway. Three bladed, counter rotating discs provide you with a constant cut, ensuring your hay production and mowing operations go off without a hitch. With a minimum 36 PTO horsepower required to operate the DM1017, you’re going to find it easy to get the results you’re searching for.
Specs
| Additional Specs | |
|---|---|
| Break Away | Standard |
| Hitch (CAT) | Cat II |
| Minimum PTO HP Required | 36 hp |
| Performance | |
|---|---|
| Cutting Width ft. | 5' 6" |
| Driveline | Pull-Type |
| PTO RPM | 540 rpm |
| Dimensions & Weight | |
|---|---|
| Pin Hitch | N/A |
| Transport Width ft. | 3' 9" |
| Disc Mower Conditioner Specs | |
|---|---|
| Cutterbar Operating Angle | -45/+15 |
| Number Of Discs and Knives | 4/12 |
| Remotes | 1 |
| Stubble Height in. | .78"-1.97" |
| Make/Model | |
|---|---|
| Model | DM1017 |
| Type | Disc Mower |
| Product Dimensions & Weight | |
|---|---|
| Length | 66.00 in |
| Width | 0.00 in |
| Height | 0.00 in |
| Weight | 860.00 lbs |
