New
Kubota DMC8540R Disc Mower Conditioner
New
Kubota DMC8540R Disc Mower Conditioner
Model: DMC8540R
- 13' 11" Working Width
- 12' 6" Transportation Width
- SemiSwing Conditioner Type
Product Description
DMC8540R DISC MOWER CONDITIONER
For the ultimate experience in disc mower conditioners, you can’t beat the Kubota DMC8540R. Boasting a massive 13’ 1” working width and 12’ 6” transport width, this disc mower conditioner ensures you’ll cover ground and maneuver with ease as you work throughout the day. With the DMC8540R’s centrifugal force tines and adjustable conditioning plate, you can achieve your desired conditioning in any crop season after season.

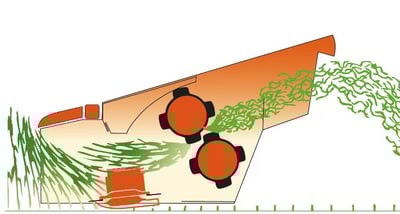

ROLLER CONDITIONING
The 8.8-inch wide rollers crafted from tough polyurethane and a steel core, offers a gentle but effective way to handle delicate crops such as alfalfa and clover. The spring-controlled pressure between the rollers provides consistent conditioning while the spring tension system protects the conditioner by allowing the rollers to open up to 2.4 inches, letting the object pass without harm.
Specs
| Additional Specs | |
|---|---|
| Drawbar | Center |
| Hitch (CAT) | Cat II |
| Minimum PTO HP Required | 74 hp |
| Performance | |
|---|---|
| Cond. Roto Speed | 900/600 |
| Driveline | Pull-Type |
| PTO RPM | 540 rpm standard, 1000 rpm optional |
| Dimensions & Weight | |
|---|---|
| Tire Size | 380/55-17 |
| Working Width ft. | 13' 11" |
| Disc Mower Conditioner Specs | |
|---|---|
| Cutterbar Operating Angle | ±15 degree |
| Number Of Discs and Knives | 10 discs |
| Remotes | 2 |
| Stubble Height in. | 1.18-1.57 in |
| Make/Model | |
|---|---|
| Model | DMC8540R |
| Type | Disc Mower Conditioner |
| Conditioning Systems | |
|---|---|
| Roll Type | Roller conditioner |
| Product Dimensions & Weight | |
|---|---|
| Length | 0.00 in |
| Width | 162.00 in |
| Height | 0.00 in |
| Weight | 5974.00 lbs |
