New

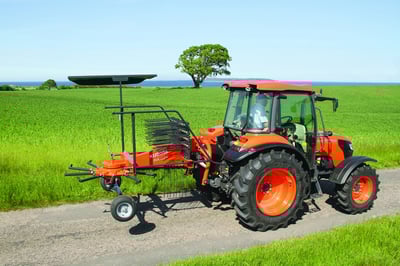

Kubota RA1035 Rotary Rake
New
Kubota RA1035 Rotary Rake
Model: RA1035
- 11' 6" Working Width
- 11' Transportation Width
- FarmLine Rakes
Product Description
RA1035 ROTARY RAKE
Spend more time working and less time maintaining with the Kubota RA1035 Rake! Built with all types and volumes of crops in mind, the three-point linkage, 9’ 2” rake is easily maneuvered and transported. Its exceptional raking ability is achieved through high tine frequency for a clean performance. Top-of-the-line durability and ease of use promise that you’re going to be seeing clean and optimized results in no-time at all.
Specs
| Performance | |
|---|---|
| Capacity Theo. (Acres/h) | 9.6 |
| Swath Delivery | Left |
| Number of Rotors | 1 |
| Number of Double Tines/Arm | 4 |
| Number of Tine Arms Per Rotor | 10 |
| Height Adjustment | Mechanical |
| Dimensions & Weight | |
|---|---|
| Linkage Drawbar | N/A |
| Lower Links (2-pt.) | N/A |
| Parking Height ft. | 5' 7" |
| Pivoting 3-pt Headstock (cat.) | Cat I/II |
| Rotor Diameter ft. | 9' 2" |
| Tine Diameter in. | .35" |
| Tire Size | (Rotors) 16 x 6.5-8 |
| Transport Length ft. | 11' |
| Transport Width ft. | 5' 9" |
| Working Width ft. | 11' 6" |
| Pickup | |
|---|---|
| Tine Diameter in. | .35" |
| Make/Model | |
|---|---|
| Model | RA1035 |
| Type | Rotary Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 132.00 in |
| Width | 138.00 in |
| Height | 67.00 in |
| Weight | 926.00 lbs |
