New

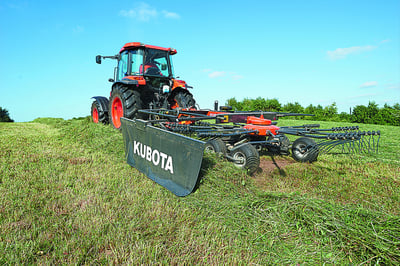

Kubota RA1042T Rotary Rake
New
Kubota RA1042T Rotary Rake
Model: RA1042T
- 13' 9" Working Width
- 6' 7" Transportation Width
- FramLine Rake
Product Description
RA1042T ROTARY RAKE
Do you need higher performance without higher horsepower? The Kubota RA1042T has the bearing strength and durability of larger models. The 10’ 2'' working width and the rake’s curved tines are primed and ready to handle high capacity crops and still give you the performance you’re looking for. The trailed rake is also transported easily after a long day’s work, thanks to its foldable tine arms, making for an astonishing 6’ 7” transport width.
Specs
| Performance | |
|---|---|
| Capacity Theo. (Acres/h) | 11.4 |
| Swath Delivery | Left |
| Number of Rotors | 1 |
| Number of Double Tines/Arm | 4 |
| Number of Tine Arms Per Rotor | 11 |
| Height Adjustment | Mechanical |
| Dimensions & Weight | |
|---|---|
| Linkage Drawbar | Standard |
| Lower Links (2-pt.) | N/A |
| Parking Height ft. | 7' 7" |
| Pivoting 3-pt Headstock (cat.) | N/A |
| Rotor Diameter ft. | 11' |
| Tine Diameter in. | .35" |
| Tire Size | (Rotors) 18.5 x 8.5-8 |
| Transport Length ft. | 13' 2" |
| Transport Width ft. | 6' 7" |
| Working Width ft. | 13' 9" |
| Pickup | |
|---|---|
| Tine Diameter in. | .35" |
| Make/Model | |
|---|---|
| Model | RA1042T |
| Type | Rotary Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 158.00 in |
| Width | 165.00 in |
| Height | 91.00 in |
| Weight | 1257.00 lbs |
