New
Kubota RA2071T EVO Rotary Rake
New
Kubota RA2071T EVO Rotary Rake
Model: RA2071T EVO
- 21' 8"- 23' 3" Working Width
- 9' 10" Transportation Width
- FarmLine Rake
Product Description

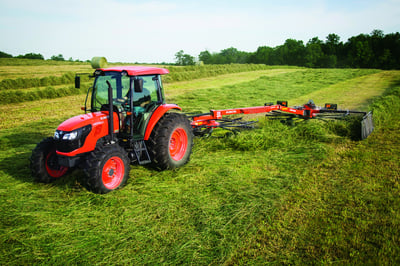

RA2071T EVO ROTARY RAKE
The RA2071T EVO has a working width of up to 23'3" in double swath position and has features like the Kubota TerraLink flex system and curved tine arms. Independently working twin rotors provide the option to rake the crop into a single swath or two individual swaths, giving you choices for optimum dry time. The high ground clearance makes headland turning no problem over existing swaths, and the reduced width makes transportation easy.
Specs
| Performance | |
|---|---|
| Capacity Theo. (Acres/h) | 18 |
| Swath Delivery | Left |
| Number of Rotors | 2 |
| Number of Double Tines/Arm | 4 |
| Number of Tine Arms Per Rotor | 11/12 |
| Height Adjustment | Hydraulic/Mechanical |
| Dimensions & Weight | |
|---|---|
| Linkage Drawbar | Standard |
| Lower Links (2-pt.) | N/A |
| Parking Height ft. | N/A |
| Pivoting 3-pt Headstock (cat.) | N/A |
| Rotor Diameter ft. | 9' 8" |
| Tine Diameter in. | .35" |
| Tire Size | (Rotors) 18.5 x 8.5-8 |
| Transport Length ft. | 24' 9" |
| Transport Width ft. | 9' 10" |
| Working Width ft. | 21' 8"/23' 3" |
| Pickup | |
|---|---|
| Tine Diameter in. | .35" |
| Make/Model | |
|---|---|
| Model | RA2071T EVO |
| Type | Rotary Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 297.00 in |
| Width | 279.00 in |
| Height | 0.00 in |
| Weight | 2976.00 lbs |
