New
Kubota RA2584 Rotary Rake
New
Kubota RA2584 Rotary Rake
Model: RA2584
- 24' 11"- 27' 7" Working Width
- 9' 2" Transportation Width
- ProLine Rakes
Product Description

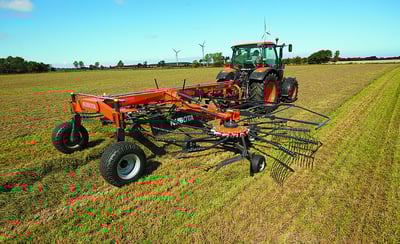

RA2584 ROTARY RAKE
Maximize your raking performance with the Kubota RA2584! Your RA2584 is ready to make short work of your raking needs with 0.39’ wire tines, infinitely variable cam track adjustment, and extreme durability. The rake’s working width can be adjusted between 24’ 11” to 27’ 7” to ensure you’re covering plenty of ground, and the automatic swath boards fold up to give the rake a 9’ 2” transport width. Take it to the limit and don’t turn back with the Kubota RA2584!
Specs
| Performance | |
|---|---|
| Capacity Theo. (Acres/h) | 22.7 |
| Swath Delivery | Center |
| Number of Rotors | 2 |
| Number of Double Tines/Arm | 4 |
| Number of Tine Arms Per Rotor | 2 x 12 |
| Height Adjustment | Mechanical |
| Dimensions & Weight | |
|---|---|
| Linkage Drawbar | N/A |
| Lower Links (2-pt.) | Standard |
| Parking Height ft. | 13' 5" |
| Pivoting 3-pt Headstock (cat.) | N/A |
| Rotor Diameter ft. | 12' |
| Tine Diameter in. | .39" |
| Tire Size | (Rotors) 16 x 6.5-8 |
| Transport Length ft. | 20' 6" |
| Transport Width ft. | 9' 2" |
| Working Width ft. | 24' 11"-27' 7" |
| Pickup | |
|---|---|
| Tine Diameter in. | .39" |
| Make/Model | |
|---|---|
| Model | RA2584 |
| Type | Rotary Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 246.00 in |
| Width | 331.00 in |
| Height | 161.00 in |
| Weight | 4300.00 lbs |
