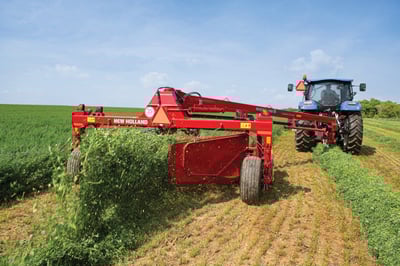

New Holland Discbine 313 Plus Center-Pivot Disc Mower-Conditioner
New
New Holland Discbine 313 Plus Center-Pivot Disc Mower-Conditioner
Model: Discbine 313 Plus
- 8 discs
- 13' 1" cutting width
- 90 minimum PTO horsepower required
Product Description
NEW HOLLAND DISCBINE 313 PLUS
With a Discbine 313 PLUS, you’ll gain an additional 1’ 4”-wider cut for increased cutting capacity compared to the Discbine 312 PLUS. You’ll also benefit from a wider cutting-to-conditioning ratio with the 125”-wide conditioning system.
Specs
| Additional Specs | |
|---|---|
| Hitch | Swivel |
| Hitch (CAT) | Cat II/III |
| Minimum PTO HP Required | 90 hp |
| Performance | |
|---|---|
| PTO RPM | 1000 rpm |
| Dimensions & Weight | |
|---|---|
| Working Width ft. | 13' 1" |
| Deck | |
|---|---|
| Cutting Height | 0.5-2.6 in |
| Disc Mower Conditioner Specs | |
|---|---|
| Cutterbar Operating Angle | -2 to -10 degree |
| Cutterbar Type | MowMax II Plus, Moduler |
| Drive Method | Belt driven enclosed gearbox |
| Number Of Discs and Knives | 8/16 |
| Make/Model | |
|---|---|
| Model | Discbine 313 Plus |
| Type | Disc Mower Conditioner |
| Conditioning Systems | |
|---|---|
| Roll Type | Roll or leaning-edge flail tine |
| Product Dimensions & Weight | |
|---|---|
| Length | 0.00 in |
| Width | 161.00 in |
| Height | 0.00 in |
| Weight | 6460.00 lbs |
