New

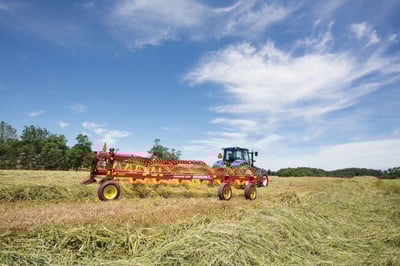

New Holland DuraVee 1020 Trailing Wheel Rake
New
New Holland DuraVee 1020 Trailing Wheel Rake
Model: DuraVee 1020
- 10 rake wheels
- 20' 4" maximum working width
- 30 minimum PTO horsepower required
Product Description
DURAVEE 1020 TRAILING WHEEL RAKE
The DuraVee 1020 is designed with ten rake wheels spanning a total working width of 20' 4", each 55 inches in diameter and equipped with 40 durable seven-millimeter tines. These rake wheels are spring-mounted, allowing each to independently float over uneven terrain, ensuring a cleaner and more precise raking performance. With a simple pin adjustment on either side for working height and an optional hydraulic kit for windrow width control, operators can easily tailor windrows from three to six feet wide, all while staying seated for added convenience.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 30 hp |
| Performance | |
|---|---|
| Number of Rotors | 10 |
| Windrow in. | Minimum: 3', Maximum: 6 |
| Teeth Per Wheel | 40 |
| Dimensions & Weight | |
|---|---|
| Parking Height ft. | 6' 3" |
| Tire Size | 205/75-15 |
| Transport Width ft. | 8' 3" |
| Working Width ft. | 20' 4" |
| Make/Model | |
|---|---|
| Model | DuraVee 1020 |
| Type | Wheel Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 0.00 in |
| Width | 99.00 in |
| Height | 75.00 in |
| Weight | 2750.00 lbs |
