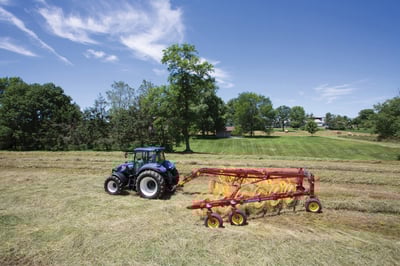

New Holland DuraVee 1631 Trailing Wheel Rake
New
New Holland DuraVee 1631 Trailing Wheel Rake
Model: DuraVee 1631
- 16 rake wheels
- 31' maximum working width
- 40 minimum PTO horsepower required
Product Description
DURAVEE 1631 TRAILING WHEEL RAKE
With an impressive 31' working with the DuraVee 1631 utilizes 16 rake wheels, each 55 inches in diameter and feature 40, seven-millimeter tines. Optional 60 inch rake wheels are available for this model acquiring better ground engagement with stiffer 7.5-millimeter tines. Suspended by springs, each wheel individually adjusts to float across the contours of the ground for cleaner raking. Working height can be adjusted by a single pin on each side of the rake. Uniformed rows of hay are produced ranging from three to six feet wide with an optional hydraulic windrow width adjustment kit that can be controlled from the comfort of your seat.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 40 hp |
| Performance | |
|---|---|
| Number of Rotors | 16 |
| Windrow in. | Minimum: 3', Maximum: 6 |
| Teeth Per Wheel | 40 |
| Dimensions & Weight | |
|---|---|
| Parking Height ft. | 6' 3" |
| Tire Size | 205/75-15 |
| Transport Width ft. | 8' 3" |
| Working Width ft. | 31' |
| Make/Model | |
|---|---|
| Model | DuraVee 1631 |
| Type | Wheel Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 0.00 in |
| Width | 99.00 in |
| Height | 75.00 in |
| Weight | 5285.00 lbs |
