New Holland HM235 Economy Disc Mower
New
New Holland HM235 Economy Disc Mower
Model: HM235
- 5 discs
- 6' 9" cutting width
- 40 minimum PTO horsepower required
Product Description
NEW HOLLAND HM235

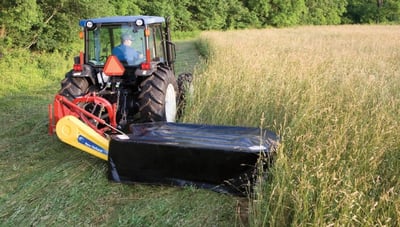

Cleanly slice through thick crops at high speeds with the HM235 disc mower. Utilizing five low-profile, oval cutting discs with two knives per disc for wet grass, ant hills, and gopher mounds. Rock guards and skid shoes protect the discs and carry the cutterbar over uneven ground. 3-point hitch mounting, two adjustable parking stands and a storage support for the PTO shaft make it easy to attach and remove HM series mowers.
Specs
| Additional Specs | |
|---|---|
| Hitch (CAT) | Cat I/II |
| Minimum PTO HP Required | 40 hp |
| Performance | |
|---|---|
| Cutting Width ft. | 6' 9" |
| PTO RPM | 540 rpm |
| Disc speed RPM | 3154 rpm |
| Disc Mower Conditioner Specs | |
|---|---|
| Breakaway Angle Degrees | 21 degree |
| Cutterbar Operating Angle | +18/-30 |
| Number Of Discs and Knives | 5/2 |
| Remotes | 1 |
| Stubble Height in. | 0.63-2.36 in |
| Make/Model | |
|---|---|
| Model | HM235 |
| Type | Disc Mower |
| Product Dimensions & Weight | |
|---|---|
| Length | 54.33 in |
| Width | 149.21 in |
| Height | 107.48 in |
| Weight | 1016.00 lbs |
