New Holland HM236 Economy Disc Mower
New
New Holland HM236 Economy Disc Mower
Model: HM236
- 6 discs
- 7' 11" cutting width
- 50 minimum PTO horsepower required
Product Description

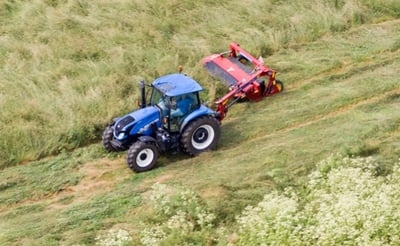

NEW HOLLAND HM236
With the widest cutting width of seven feet, eleven inches and six low-profile oval cutting discs with two knives per disc, cleanly slice through thick crops at high speeds. Rock guards and skid shoes protect the discs and carry the cutterbar over uneven ground. 3-point hitch mounting, two adjustable parking stands and a storage support for the PTO shaft make it easy to attach and remove HM series mowers.
Specs
| Additional Specs | |
|---|---|
| Hitch (CAT) | Cat II |
| Minimum PTO HP Required | 50 hp |
| Performance | |
|---|---|
| Cutting Width ft. | 7' 11" |
| PTO RPM | 540 rpm |
| Disc speed RPM | 3154 rpm |
| Disc Mower Conditioner Specs | |
|---|---|
| Breakaway Angle Degrees | 21 degree |
| Cutterbar Operating Angle | +18/-30 |
| Number Of Discs and Knives | 6/2 |
| Remotes | 1 |
| Stubble Height in. | 0.63-2.36 in |
| Make/Model | |
|---|---|
| Model | HM236 |
| Type | Disc Mower |
| Product Dimensions & Weight | |
|---|---|
| Length | 54.33 in |
| Width | 178.35 in |
| Height | 122.44 in |
| Weight | 1215.00 lbs |
