New Holland ProCart 1022 Carted Wheel Rake
New
New Holland ProCart 1022 Carted Wheel Rake
Model: ProCart 1022
- 10 rake wheels
- 21' maximum working width
- 30 minimum PTO horsepower required
Product Description

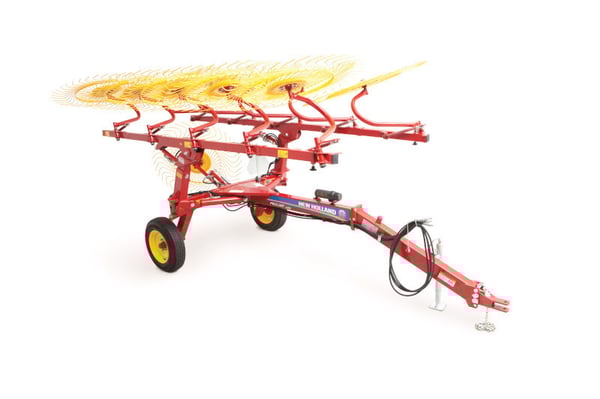

PROCART 1022 CARTED WHEEL RAKE

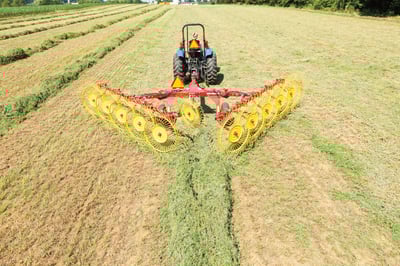

The New Holland ProCart 1022 wheeled rake is designed for high-capacity, efficient raking with a maximum working width of 21 feet. It features individual floating rake wheels that provide cleaner raking and help create uniform windrows, making it easier to bale. Its compact, durable design allows for easy maneuverability in tight spaces, and the high frame clearance ensures effective handling of high-volume crops​.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 30 hp |
| Performance | |
|---|---|
| Windrow in. | Minimum: 3', Maximum: 6' 7" |
| Teeth Per Wheel | 40 |
| Dimensions & Weight | |
|---|---|
| Parking Height ft. | 7' 9" |
| Tire Size | 205 x 75/15 |
| Transport Width ft. | 8' 5" |
| Working Width ft. | Minimum: 19', Maximum: 21' |
| New Holland Rakes | |
|---|---|
| Number of Finger Wheels | 10 |
| Make/Model | |
|---|---|
| Model | ProCart 1022 |
| Type | Wheel Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 228.00 in |
| Width | 101.00 in |
| Height | 93.00 in |
| Weight | 1875.00 lbs |
