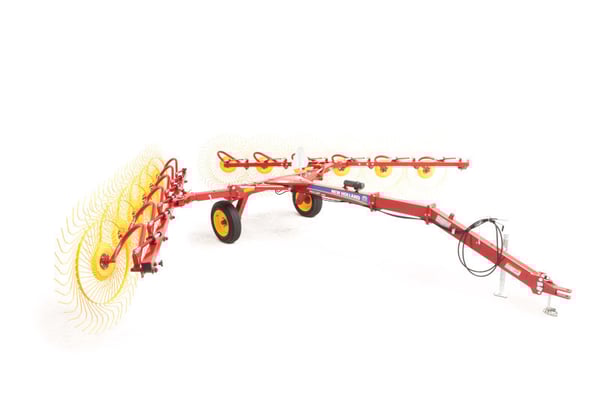

New Holland ProCart 1225 Carted Wheel Rake
New
New Holland ProCart 1225 Carted Wheel Rake
Model: ProCart 1225
- 12 rake wheels
- 24' 6" maximum working width
- 50 minimum PTO horsepower required
Product Description
PROCART 1225 CARTED WHEEL RAKE
The ProCart 1225 wheel rake makes adapting to change in crop conditions easy by raising the leading rake wheel on each beam and locking it out. This flexibility allows you to produce the ideal windrow size for your baler or harvester, no matter the season or crop conditions. Rake with either side, turn over damp windrows, or select “V” raking with a quick turn of the hydraulic lock valve. Individual floating rake wheels, suspended by an adjustable compression spring allows you to easily gather over 24 feet with less stubble damage than rakes with tandem-mounted rake wheels.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 50 hp |
| Performance | |
|---|---|
| Windrow in. | Minimum: 3', Maximum: 6' 7" |
| Teeth Per Wheel | 40 |
| Dimensions & Weight | |
|---|---|
| Parking Height ft. | 7' 9" |
| Tire Size | 205 x 75/15 |
| Transport Width ft. | 8' 5" |
| Working Width ft. | Minimum: 21' 8", Maximum: 24' 6" |
| New Holland Rakes | |
|---|---|
| Number of Finger Wheels | 12 |
| Make/Model | |
|---|---|
| Model | ProCart 1225 |
| Type | Wheel Rake |
| Product Dimensions & Weight | |
|---|---|
| Length | 264.00 in |
| Width | 101.00 in |
| Height | 93.00 in |
| Weight | 2115.00 lbs |
