New Holland ProTed 3417 Rotary Tedder
New
New Holland ProTed 3417 Rotary Tedder
Model: ProTed 3417
- 4 rotors
- 17' 1" tedding width
- 20 minimum PTO horsepower required
Product Description
PROTED 3417 ROTARY TEDDER

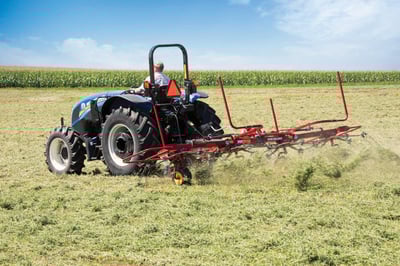

The ProTed 3417 rotary tedder from New Holland is a versatile, four-rotor machine ideal for traditional haymakers using nine- or ten-foot-wide mowers. With six tine arms per rotor and a low overall weight, this model is perfect for smaller tractors, requiring only 20 PTO horsepower to operate efficiently. Its heavy-duty, one-piece boxed metal frame and modular gearboxes ensure durability, while the compact hydraulic folding system and integrated tine height control allow for quick transport and easy operation
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 20 hp |
| Performance | |
|---|---|
| Tedding Width | 17' 1" |
| Number of Rotors | 4 |
| Number of Tine Arms Per Rotor | 6 |
| Dimensions & Weight | |
|---|---|
| Linkage Drawbar | Standard |
| Transport Width ft. | 9' 6" |
| Make/Model | |
|---|---|
| Model | ProTed 3417 |
| Type | Tedder |
| Product Dimensions & Weight | |
|---|---|
| Length | 102.00 in |
| Width | 114.00 in |
| Height | 104.00 in |
| Weight | 904.00 lbs |
