Product Description

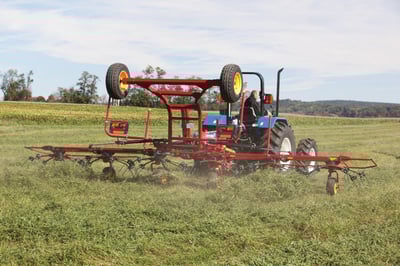

PROTED 3625 ROTARY TEDDER
The ProTed 3625 is a six-rotor tedder that boasts a working width of nearly 25 feet for 50% more productivity than four-rotor models. The extra width means you can maintain your ideal tedding speed and fluff three swaths simultaneously to finish faster. Each rotor uses seven tine arms to handle heavy windrows from larger mowers. Since not all crop conditions are the same, the wheel columns can be adjusted to provide three different rotor angles. The right position can enhance spreading action and help speed up drying. A steep angle is more aggressive, while a flatter angle is gentler to help prevent leaf loss in high-value crops like alfalfa.
Specs
Additional Specs | |
---|---|
Minimum PTO HP Required | 50 hp |
Performance | |
---|---|
Tedding Width | 24' 11" |
Number of Rotors | 6 |
Number of Tine Arms Per Rotor | 7 |
Dimensions & Weight | |
---|---|
Linkage Drawbar | Standard |
Transport Width ft. | 9' 9" |
Hydraulic System | |
---|---|
Hydraulic Requirements | 1 single acting remote, 1 double acting remote |
Make/Model | |
---|---|
Model | ProTed 3625 |
Type | Tedder |
Product Dimensions & Weight | |
---|---|
Length | 150.00 in |
Width | 299.00 in |
Height | 157.00 in |
Weight | 2640.00 lbs |
