New Holland Speedrower 220 Plus Self-Propelled Windrower
New
New Holland Speedrower 220 Plus Self-Propelled Windrower
Model: 220 Plus
- FPT 6-cylinder engine
- 210 rated horsepower
- 30 mph top speed
Product Description

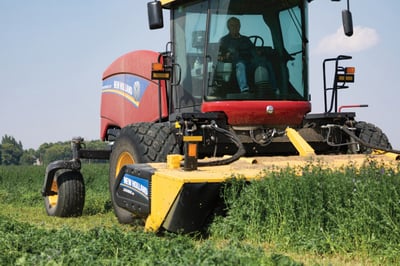

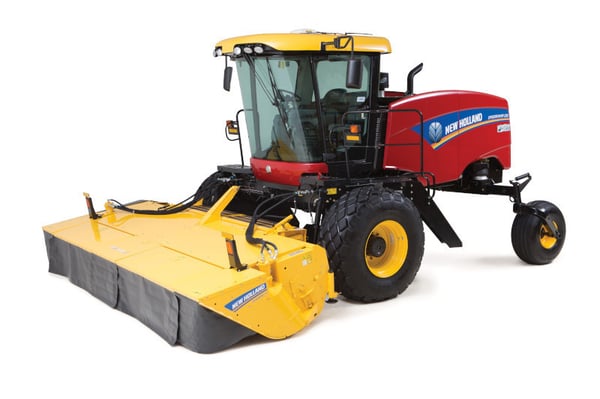

MEET THE SPEEDROWER 220 PLUS WINDROWER
The Speedrower 220 Plus has the potential to deliver over 11,000 lb./ft of torque to the drive wheels and industry leading, high-speed transport of up to 30 mph. This high-speed version provides head-forward visibility plus added control of automatic service brakes and rear axle steering for stable, confident, and productive transporting. With features such as IntelliSteer guidance and IntelliCruise Automation you can focus more on mowing and less on operating the machine with the touch of a button.
INTELLIVIEW IV DISPLAY
SENSIDRIVE GROUND DRIVE SYSTEM
INTELLICRUISE AUTOMATION
The IntelliCruise automation system enhances operator performance with two driving modes: Power Cruise and Eco Cruise. Power Cruise allows you to set a maximum forward speed, automatically adjusting ground speed to maintain disc speed and header power as conditions change. Eco Cruise lets you control ground speed while setting the engine speed range, reducing engine speed and fuel consumption in light to medium crops, and increasing it in heavier crops while keeping ground speed constant.
Specs
| Additional Specs | |
|---|---|
| IntelliView IV Touch Screen | Standard |
| Engine | |
|---|---|
| Aspiriation | Turbocharged with air-to-air intercooler |
| Displacement | 411 cu in (6.7 L) |
| Engine Model | FPT 6-cylinder, Tier 4B |
| Fuel Injection Pump | Electronically controlled high-pressure common rail |
| Constant Clean, Rotating Wand Cooling System Pre-Cleaner | Standard |
| Dimensions & Weight | |
|---|---|
| Wheel base | 154.1 in |
| Length With Header (in. (mm)) | 293 (7442) with Durabine PLUS |
| Capacities | |
|---|---|
| DEF | 19 gal (71.9 L) |
| Fuel Tank | 120 gal (454 L) |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Operating Modes | In-field/Transport |
| Final Drive | Double reduction planetary |
| Hydrostatic Steering | Electronically Controlled - Customizable Resistance |
| Active Rear Axle Steering | High speed version is standard |
| CommandGrip™ controlled customizable speed controls | Standard |
| In-field Speed Range (mph (kph)) | 0-20 (0-32) |
| Windrower Specs | |
|---|---|
| Electronic Disc Speed Management | Standard |
| Factory IntelliSteer™ Auto Guidance ready | Standard |
| Headland Management Automation with speed control | Standard |
| IntelliSteer™ Auto Guidance - high cross track error engagement | Standard |
| IntelliSteer™ Auto Guidance - line acquisition speed range (mph (kph)) | 0-10 (0-16) |
| IntelliSteer™ Auto Guidance - maximum line acquisition angle (degrees) | Up to 90 degrees |
| Terraglide™ Rear Axle Suspension Articulation (degrees) | 12 degrees |
| Make/Model | |
|---|---|
| Model | Speedrower 220 Plus |
| Type | Windrower |
| Header Drive | |
|---|---|
| Header Drive Pump Type | Electronic Variable Displacement |
| Max. header drive pump output at 2,200 engine RPM (gpm (Lpm)) | 92 (350) |
| Max. header drive pump output at 2,600 rpm disc speed (gpm (Lpm)) | 78 (296) |
| Header Power Reverser | Standard |
| Header Flotation | Independent RH/LH hydraulic (in-cab adjustable) |
| Hydraulic Header Tilt | Standard |
| Single Lever Header Transport Lock System | Standard |
| Product Dimensions & Weight | |
|---|---|
| Length | 293.00 in |
| Width | 154.80 in |
| Height | 134.80 in |
| Weight | 1300.00 lbs |
