New Holland Speedrower 260 Plus Self-Propelled Windrower

N H S R260

Product Description

New Holland Speedrower 260.png

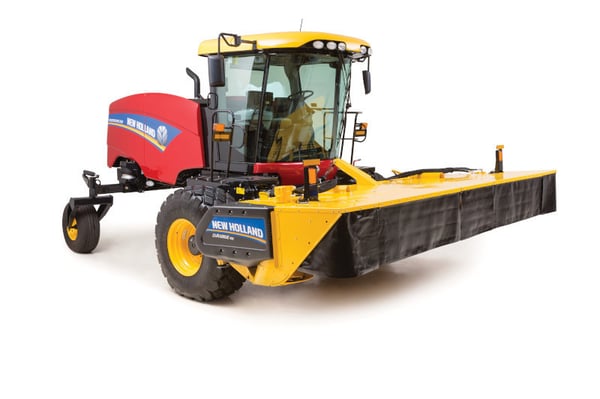

MEET THE SPEEDROWER 260 PLUS WINDROWER

Powered by the FPT 6-cylinder engine, the Speedrower 260 Plus windrower provides an impressive 250-261 hp output with speeds up to 30 mph. Precision control is attained with the CommandGrip multifunction handle and the 10.4 inch IntelliView IV color touchscreen display. Comfort Ride cab suspension and Terraglide rear axle suspension makes for the most comfortable ride possible in the roughest field conditions.

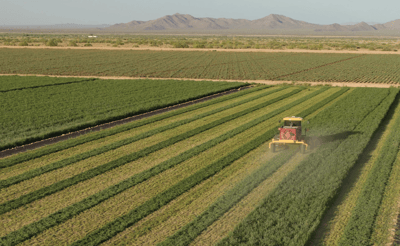

HEADLAND MANAGEMENT AUTOMATION

New Holland Speedrower intellicruise.png
Repetitive activities can lead to fatigue and reduced productivity, especially during long mowing days. Headland Management Automation simplifies headland turns and improves pass-to-pass accuracy by controlling ground speed, header lift, and merger lift with a single button, helping to reduce fatigue and maintain productivity.

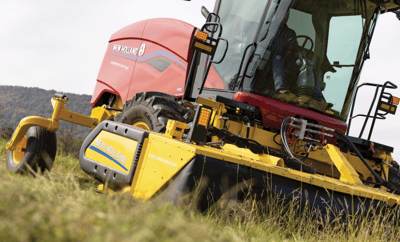

SENSIDRIVE GROUND DRIVE SYSTEM

New Holland Speedrower sensidrive.png
To cut more acres in a day, Speedrower 260 PLUS windrowers are easy to drive and operates at fast speeds of 30 mph. The SensiDrive ground drive system uses drive-by-wire technology to control ground drive pumps and wheel motors, resulting in impressive power in tough conditions and straight mowing with less steering fatigue.

INTELLICRUISE AUTOMATION

The IntelliCruise automation system enhances operator performance with two driving modes: Power Cruise and Eco Cruise. Power Cruise allows you to set a maximum forward speed, automatically adjusting ground speed to maintain disc speed and header power as conditions change. Eco Cruise lets you control ground speed while setting the engine speed range, reducing engine speed and fuel consumption in light to medium crops, and increasing it in heavier crops while keeping ground speed constant.

New Holland Speedrower intelliview IV.png

Specs

Additional Specs

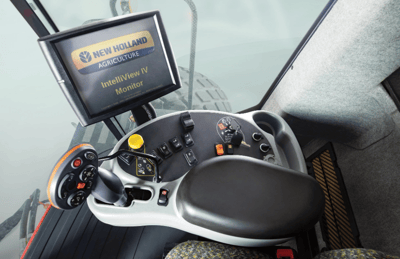

IntelliView IV Touch Screen
Standard
Engine
Aspiriation
Turbocharged with air-to-air intercooler
Displacement
411 cu in (6.7 L)
Engine Model
FPT 6-cylinder, Tier 4B
Fuel Injection Pump
Electronically controlled high-pressure common rail
Constant Clean, Rotating Wand Cooling System Pre-Cleaner
Standard
Dimensions & Weight
Wheel base
154.1 in
Length With Header (in. (mm))
293 (7442) with Durabine PLUS
Capacities
DEF
19 gal (71.9 L)
Fuel Tank
120 gal (454 L)
Transmission
Transmission
Hydrostatic (HST)
Operating Modes
In-field/Transport
Final Drive
Double reduction planetary
Hydrostatic Steering
Electronically Controlled - Customizable Resistance
Active Rear Axle Steering
High speed version is standard
CommandGrip™ controlled customizable speed controls
Standard
In-field Speed Range (mph (kph))
0-20 (0-32)
Windrower Specs
Electronic Disc Speed Management
Standard
Factory IntelliSteer™ Auto Guidance ready
Standard
Headland Management Automation with speed control
Standard
IntelliSteer™ Auto Guidance - high cross track error engagement
Standard
IntelliSteer™ Auto Guidance - line acquisition speed range (mph (kph))
0-10 (0-16)
IntelliSteer™ Auto Guidance - maximum line acquisition angle (degrees)
Up to 90 degrees
Terraglide™ Rear Axle Suspension Articulation (degrees)
12 degrees
Make/Model
Model
Speedrower 260 Plus
Type
Windrower
Header Drive
Header Drive Pump Type
Electronic Variable Displacement
Max. header drive pump output at 2,200 engine RPM (gpm (Lpm))
92 (350)
Max. header drive pump output at 2,600 rpm disc speed (gpm (Lpm))
78 (296)
Header Power Reverser
Standard
Header Flotation
Independent RH/LH hydraulic (in-cab adjustable)
Hydraulic Header Tilt
Standard
Single Lever Header Transport Lock System
Standard
Product Dimensions & Weight
Length
293.00 in
Width
154.80 in
Height
134.80 in
Weight
1400.00 lbs
