New

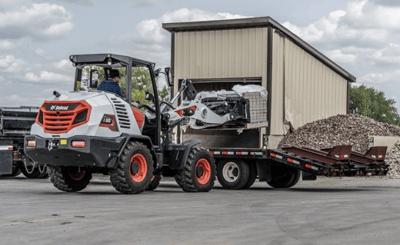

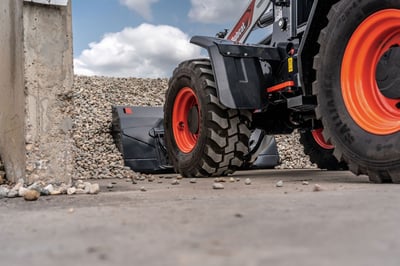

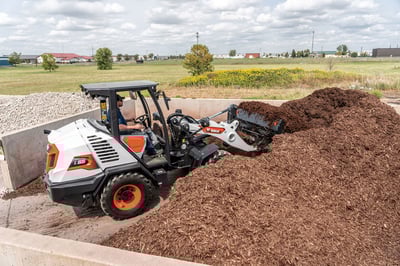

Bobcat L65 Compact Wheel Loader
New
Bobcat L65 Compact Wheel Loader
Model: L65
- Up to 15.1-mph
- 55 engine horsepower
- 9,944 lb. operating weight
Product Description
MEET THE L65 WHEEL LOADER
The Bobcat L65 Compact Wheel Loader features a powerful Bobcat Tier 4, turbo-charged engine that delivers high-torque performance and efficiency. Its articulated steering offers a tight-turning radius, ensuring excellent maneuverability. With a high bucket capacity of 7/8 cubic yard and a 10.5-foot lift height, the L65 is built for heavy lifting. Additionally, it comes equipped with a full-color, 5-inch display panel and a seat-mounted joystick for enhanced operator comfort and control.
THREE DRIVE MODES
BOBCAT ENGINE
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Optional |
| Speedometer | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Fuel Type | Diesel |
| Gross HP | 55 hp |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Articulation Angle | 40 degree |
| Bucket Capacities | 0.86-1.3 yd3 |
| Rated Operating Capacity (ISO) | 3133 lbs |
| Tipping Capacity | 6266 lbs |
| Dump Angle @ Max Height | 45 degree |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 11.3 in |
| Height to Bucket Hinge Pin | 120.58 in |
| Length with Standard Bucket | 218 in |
| Oscillation Angle | 8 degree |
| Operating Weight | 9944 lbs |
| Tire Size | 365/70 R18 |
| Turning Radius Outside | 169.2 in |
| Wheel base | 82.7 in |
| Width (with bucket) | 74.8 in |
| Width | 69.7 in |
| Capacities | |
|---|---|
| Fuel Tank | 20.8 gal |
| Hydraulic System | |
|---|---|
| Auxiliary Std Flow | 19.8 gpm |
| Pump Capacity | 19.8 gpm |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Transmission Range | 2-Speed |
| Make/Model | |
|---|---|
| Model | L65 |
| Type | Wheel Loader |
