Bobcat S64 R-Series Skid-Steer Loader

Bobcat S64 R series

Product Description

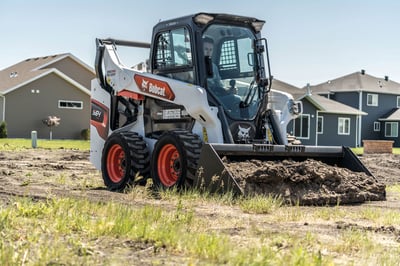

Bobcat S64 skid steer.jpg

MEET THE S64 SKID STEER

The Bobcat S64 skid-steer loader brings new meaning to revolutionary performance. Featuring exceptional maneuverability and excellent turning and skidding abilities, the 68-hp S64 makes it easy to accomplish more when working in tight spaces. The spacious, one-piece sealed and pressurized cab, ergonomic controls and optional clear side enclosure with automatic heating and air conditioning, it’s clear why operators choose this powerful, agile machine. The S64 compares in platform size to the M-Series S570 and S590 in the Bobcat skid-steer loader lineup.

IMPROVED COOLING

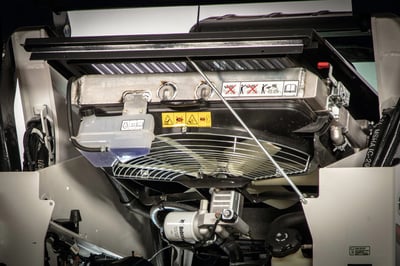

Bobcat S64 cooling.jpg
As operators trust compact equipment to run longer and do bigger, more difficult jobs, better cooling is essential. The R-Series cooling system is completely redesigned for optimal operation and maximum uptime. The reversible fan increases uptime by purging debris buildup from the rear screen, reducing the need for manual cleaning. Auto mode and operator controlled purge mode reverses airflow automatically or on demand.

VERTICAL LIFT PATH

Bobcat S76 liftpath.webp
A vertical lift path on R-Series loaders provides higher lift capacity and more reach at full lift height than a radius lift path, keeping the load closer to the machine while raising the loader arms. The lift arms feature cast-steel construction in specific areas for increased material strength and rigidity. Use of cast steel allows for greater strength with a slimmer profile arm, enhancing visibility to the bucket corners.

FEATURES

  • Two speed travel
  • Dual-direction bucket positioning
  • Automatic heat and air conditioning
  • Standard display (includes keyless start)
  • Bob-Tach attachment system
  • Protected battery with remote jumpstart

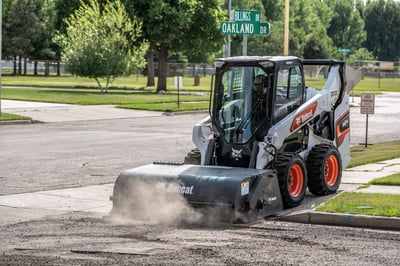

Bobcat S64 sweeper.jpg



Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Shutdown
Standard
Fuel Type
Diesel
Gross HP
68 hp
Turbocharged Engine
Yes
Performance
Rated Operating Capacity (ISO)
2300 lb
Travel Speed
7.4 mph
Tipping Load
4600 lb
Driveline
4WD
Dimensions & Weight
Height to Bucket Hinge Pin
120 in
Height with Operator Cab
80.5 in
Length with Standard Bucket
135 in
Length without Attachment
107 in
Operating Weight
6974 lb
Reach @ Maximum Height
34.2 in
Turning Radius
80.1 in
Wheel base
44.6 in
Width (with bucket)
68 in
Capacities
Fuel Tank
28.3 gal
Hydraulic System
High Flow Option
Optional
Auxiliary Hydraulics
Standard
Auxiliary Std Flow
17.6 gal/min
Auxiliary High Flow
26.9 gal/min
System Relief @ Quick Couplers
3500 psi
Transmission
Transmission
Hydrostatic (HST)
Two Speed Travel
Standard
Travel Speed (2-speed option)
11 mph
Make/Model
Model
S64
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
135.00 in
Width
68.00 in
Height
80.50 in
Weight
6974.00 lbs
