Bobcat S66 R-Series Skid-Steer Loader

Bobcat S66 R series

Product Description

Bobcat S66 skid steer.jpg

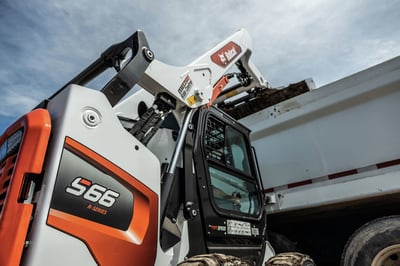

MEET THE S66 SKID-STEER LOADER

The Bobcat S66 skid-steer loader is a vertical lift path machine that has been redesigned to lift bigger loads higher. Cast-steel lift arms and increased hydraulic performance provides 5,378-pounds of lift force to get jobs done quicker. Easy to find and reach service points make routine maintenance and repair in-and-out. The one-piece, sealed and pressurized cab decreases noise level inside the cab and lessens the amount of dirt and dust that can enter the cab.

TWO-SPEED TRAVEL

Bobcat S66 two speed travel.jpg
The two-speed travel feature on the Bobcat S66 skid-steer loader boosts top travel speed, enhancing efficiency and productivity. It allows operators to switch between low speed for precise control and high speed for quick movement across job sites. This reduces travel time and minimizes the need to load and unload the machine from trailers.

VERTICAL LIFT PATH

Bobcat S66 vertical lift.jpg
A vertical lift path on R-Series loaders provides higher lift capacity and more reach at full lift height than a radius lift path, keeping the load closer to the machine while raising the loader arms. The lift arms feature cast-steel construction in specific areas for increased material strength and rigidity. Use of cast steel allows for greater strength with a slimmer profile arm, enhancing visibility to the bucket corners.

OWNER CALL-OUT

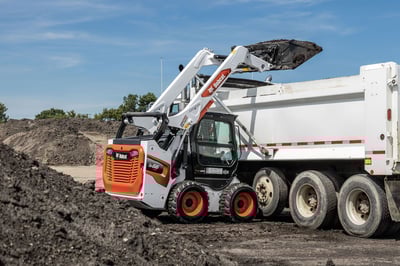

Ultimately the S66 skid-steer loader is the perfect fit for construction work, especially commercial and infrastructure construction. It has the power you need, and with its smaller size it transports without much hassle. The S66 compares in platform size to the M-Series S595 in the Bobcat skid-steer loader lineup.

Bobcat S66 forks.jpg

Specs

Additional Specs
Air Conditioning
Optional
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Shutdown
Standard
Fuel Type
Diesel
Gross HP
74.3 hp
Turbocharged Engine
Yes
Performance
Rated Operating Capacity (ISO)
2400 lb
Travel Speed
7.4 mph
Tipping Load
4800 lb
Driveline
4WD
Dimensions & Weight
Height to Bucket Hinge Pin
120 in
Height with Operator Cab
80.5 in
Length with Standard Bucket
135 in
Length without Attachment
107 in
Operating Weight
7154 lb
Reach @ Maximum Height
34.2 in
Turning Radius
80.1 in
Wheel base
44.6 in
Width (with bucket)
68 in
Capacities
Fuel Tank
28.3 gal
Hydraulic System
High Flow Option
Optional
Auxiliary Hydraulics
Standard
Auxiliary Std Flow
17.6 gal/min
Auxiliary High Flow
26.9 gal/min
System Relief @ Quick Couplers
3500 psi
Transmission
Transmission
Hydrostatic (HST)
Two Speed Travel
Standard
Travel Speed (2-speed option)
11 mph
Make/Model
Model
S66
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
135.00 in
Width
68.00 in
Height
80.50 in
Weight
2400.00 lbs
