Bobcat S70 M2-Series Skid-Steer Loader

Bobcat s70

Product Description

Bobcat S70 Skid Steer.png

MEET THE S70 SKID STEER

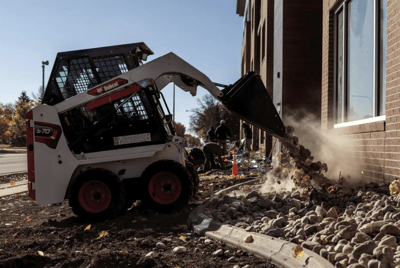

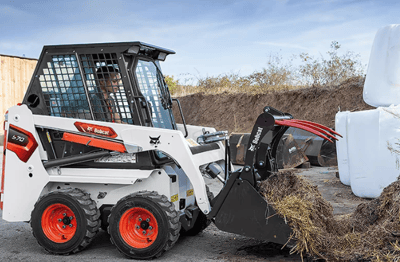

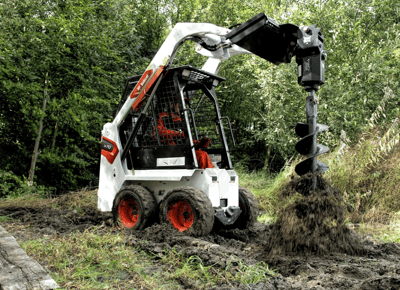

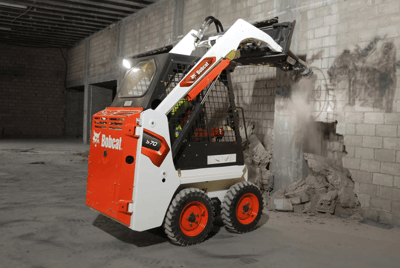

The smallest loader in the Bobcat line up, the agile Bobcat S70 skid-steer loader is just 6-feet tall and 3-feet wide, the ideal size for passing through narrow doorways, side yards, gates and other tight spaces. Perfect for jobs that are too big for a shovel and in spaces too small for a larger machine. This small, but mighty machine is compatible with a wide variety of attachments including an auger, sweeper, nitrogen breaker, trencher, soil conditioner and many more.

POWERFUL HYDRAULICS

Bobcat S70 hydraulics.png
Bobcat loaders deliver the right amount of power to each component. That directly translates to more power and balanced performance. Each component - including the engine, pumps, and hydraulic system - is engineered to deliver maximum hydraulic performance. For you, that means faster cycle times and better job-site productivity.

STANDARD BOB-TACH SYSTEM

Bobcat S70 bob-tach.png
Change attachments in less than a minute and get a tight attachment fit every time using the time-tested, standard Bob-Tach mounting system. Upgrade to the optional Power Bob-Tach system so you can change non-hydraulic attachments without leaving your seat. Just line up the attachment and press the switch.

RADIUS LIFT PATH

A radius lift path provides maximum reach at truck bed height. Arm movement forms an arc. More than 80% of that arc delivers better reach at truck bed height. A radius lift path excels in jobs at mid-range heights, like dumping, backfilling or unloading flatbed trucks.

Bobcat S70 lift.png



Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Fuel Type
Diesel
Gross HP
23.5 hp
Turbocharged Engine
No
Performance
Rated Operating Capacity (ISO)
760 lbs
Travel Speed
6.3 mph
Tipping Load
1520 lbs
Driveline
4WD
Dimensions & Weight
Height to Bucket Hinge Pin
94.5 in
Height with Operator Cab
71.4 in
Length with Standard Bucket
97.3 in
Length without Attachment
75.6 in
Operating Weight
2892 lbs
Reach @ Maximum Height
15.8 in
Turning Radius
58.7 in
Width (with bucket)
36 in
Capacities
Fuel Tank
6.5 gal
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
S70
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
75.60 in
Width
36.00 in
Height
71.40 in
Weight
760.00 lbs
