Bobcat S86 R-Series Skid-Steer Loader

Bobcat S86 R Series

Product Description

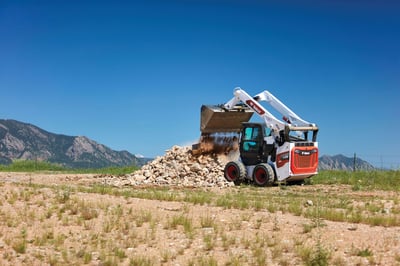

Bobcat S86 Skid Steer.jpg

MEET THE S86 SKID STEER

The S86 is the only skid-steer loader to offer three hydraulic flow options in one machine, setting a new industry benchmark in performance and attachment versatility. Featuring an optimized weight-to-horsepower ratio that ranks this vertical-lift machine among the industry’s most powerful, maneuverable, efficient and productive in its size class.

PREMIUM POWER PERFORMANCE

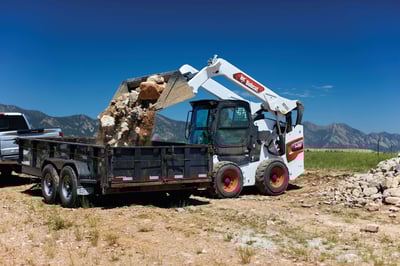

Bobcat S86 Dump.jpg
Designed to boost productivity, Premium Power Performance - an advanced electronic displacement control pump - distributes power more efficiently. This optional power management system improves engine-to-workgroup efficiency, distributing smoother, faster control and more power where and when it’s needed during multi-tasking operations.

VERTICAL LIFT PATH

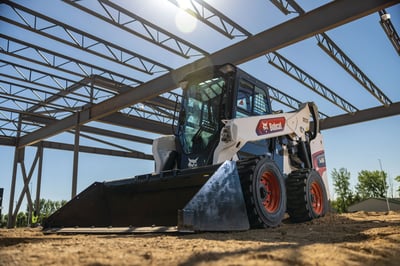

Bobcat S86 lift arms.jpg
A vertical lift path on R-Series loaders provides higher lift capacity and more reach at full lift height than a radius lift path, keeping the load closer to the machine while raising the loader arms. The lift arms feature cast-steel construction in specific areas for increased material strength and rigidity. Use of cast steel allows for greater strength with a slimmer profile arm, enhancing visibility to the bucket corners.

LEADING FEATURES

  • Standard Dual-direction bucket positioning
  • Standard automatic ride control
  • Standard rearview camera
  • One-piece, sealed and pressurized cab
  • A simple, non-DPF emissions solution
  • Enhanced workgroup response and drive response
  • Automatic heat and air conditioning
  • Optional Machine IQ wireless communication kit

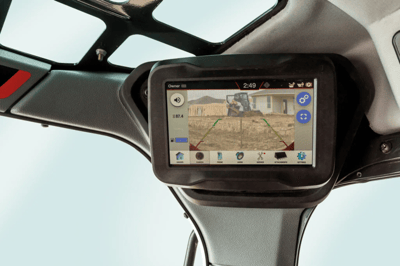

Bobcat S86 rearview camera.webp



Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Duel-Direction Bucket Positioning
Standard
Speed Management
Standard
Standard Display (Includes Keyless Start)
Standard
Reversing Fan
Optional
Operator Station
ROPS, Enclosed Cab
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Shutdown
Standard
Fuel Type
Diesel
Gross HP
105 hp
Turbocharged Engine
Yes
Performance
Rated Operating Capacity (ISO)
3400 LB
Travel Speed
6.7 mph
Tipping Load
6800 lb
Driveline
4WD
Dimensions & Weight
Height to Bucket Hinge Pin
132 in
Height with Operator Cab
83.1 in
Length with Standard Bucket
153.5 in
Length without Attachment
120.4 in
Operating Weight
9728 lb
Reach @ Maximum Height
38 in
Turning Radius
90.5 in
Wheel base
51.3 in
Width (with bucket)
74 in
Capacities
Fuel Tank
31.6 gal
Hydraulic System
High Flow Option
Optional
Auxiliary Hydraulics
Standard
Auxiliary Std Flow
23.6 gal/min
Auxiliary High Flow
36.6 gal/min
Transmission
Transmission
Hydrostatic (HST)
Two Speed Travel
Standard
Travel Speed (2-speed option)
12 mph
Make/Model
Model
S86
Type
Skid-Steer Loader
Product Dimensions & Weight
Length
153.50 in
Width
74.00 in
Height
83.10 in
Weight
9728.00 lbs
