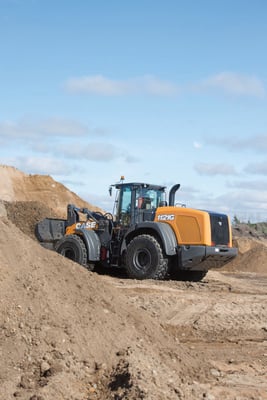

Case Construction 1121G Full Size Wheel Loader
New
Case Construction 1121G Full Size Wheel Loader
Model: 1121G
- Up to 23.2-mph
- 345 engine horsepower
- 61,650 lb. operating weight
Product Description
MEET THE 1121G WHEEL LOADER
The CASE 1121G is the heavyweight built for loading trucks and keeping production moving. All day. All night. Weighing in at 61,650 pounds and operating at 345 (257 kW) horsepower, the 1121G is built for production environments and all-day productivity with fast cycle times, extreme power, and a supremely comfortable and adjustable operating environment. With adjustable electro-hydraulic controls, a touchscreen display and collaborative fleet management technologies, the 1121G delivers a powerful combination of productivity, efficiency and uptime — all protected by CASE ProCare.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Bore X Stroke | 4.61 x 5.31 in |
| Displacement | 531 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | FPT F2CFE614F |
| Fuel Type | Diesel |
| Gross HP | 345 hp |
| No. Of Cylinders | 6 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Breakout Force | 49934 lb |
| Bucket Capacities | 5.25-6.25 yd³ (heaped) |
| Lift Capacity | 31218-32710 lb (full height) |
| Travel Speed | 4.3-23.2 mph |
| Tipping Load | 38454 lb (full turn tupping load ISO) |
| Dump Angle @ Max Height | 50 degrees |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 17.2 in |
| Height | 140.8 in |
| Height to Bucket Hinge Pin | 175.2 in |
| Height with Operator Cab | 140.8 in |
| Length | See full spec sheet |
| Operating Weight | 61650 lb |
| Reach @ Maximum Height | 50.1-57.1 in |
| Tire Size | 26.5-R25 L3 Radial |
| Turning Radius Outside | 250.6 in |
| Wheel base | 139.8 in |
| Width (with bucket) | 125.8-126.9 in |
| Width | 117.2 in |
| Capacities | |
|---|---|
| DEF | 24 gal |
| Hydraulic Tank | 66 gal |
| Fuel Tank | 125 gal |
| Hydraulic System | |
|---|---|
| Aux Hydraulics Pressure | 3495-3650 psi |
| Transmission | |
|---|---|
| Transmission | Powershift |
| Transmission Range | 4F/3R |
| Make/Model | |
|---|---|
| Model | 1121G |
| Type | Wheel Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 384.30 in |
| Width | 117.20 in |
| Height | 140.80 in |
| Weight | 63443.00 lbs |
