Case Construction 21F Compact Wheel Loader

Case Construction 21 F Wheel Loader

Product Description

Case Construction 21 F

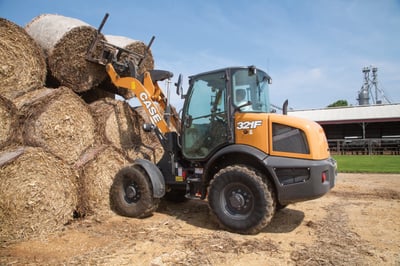

MEET THE 21F WHEEL LOADER

At only 8 ft. 9 in. (2.46 m) high, the 21F offers a more compact design that provides greater stability and leverage as well as a higher bucket dump height than previous generations. For greater versatility, it’s available with Z-Bar or Tool Carrier / Parallel Lift linkage and is compatible with skid steer attachments. This compact-yet-powerful model also meets emissions regulations with a maintenance-free Tier 4 emissions solution – another way the F Series helps you do more while requiring less.

Specs

Additional Specs
Cab Enclosure
Standard
Keyed Ignition
Standard
Operator Station
ROPS, Enclosed Cab
Engine
Bore X Stroke
3.9 x 4.3 in
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
FPT F5H FL463 B*F001
Fuel Type
Diesel
Gross HP
58 hp
No. Of Cylinders
4
Performance
Breakout Force
9199 lb
Bucket Capacities
0.92 yd³ (heaped)
Lift Capacity
6947-7050 lb (full height)
Rated Operating Capacity (ISO)
3452-3527 lb
Travel Speed
3.1-12.4 mph
Tipping Load
6997 lb (full turn tipping load ISO)
Dump Angle @ Max Height
47 degrees
Driveline
4WD
Dimensions & Weight
Ground Clearance
12.6 in
Height
96.8 in
Height to Bucket Hinge Pin
123.5 in
Height with Operator Cab
96.8 in
Length
221.9 in
Length with Standard Bucket
218.5 in
Operating Weight
10913-11272 lb
Reach @ Maximum Height
37.7 in
Rollback Angle
38-56 degrees
Tire Size
12.5-18 PRMPT Dunlop
Turning Radius Outside
146.5 in
Wheel base
81.7 in
Width (with bucket)
74.8-80.7 in
Width
68.5 in
Capacities
Hydraulic Tank
14 gal
Fuel Tank
22.7 gal
Hydraulic System
Aux Hydraulics Pressure
3336 psi
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
21F
Type
Wheel Loader
Product Dimensions & Weight
Length
221.90 in
Width
68.50 in
Height
96.80 in
Weight
11272.00 lbs
