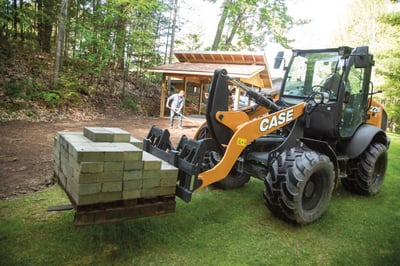

Case Construction 221F Compact Wheel Loader
New
Case Construction 221F Compact Wheel Loader
Model: 221F
- Up to 18.6-mph
- 74 engine horsepower
- 12,547 lb. operating weight
Product Description
MEET THE 221F WHEEL LOADER
The 221F Compact Wheel Loader is designed to do more on the job while requiring less from you. A strong, compact frame with Z-Bar linkage improves stability for greater leverage and load control while a Tier 4 emission solution helps meet emissions regulations without additional maintenance needs. Many other features provide more speed back into the pile, greater precision in close quarters, better material retention and enhanced attachment compatibility thanks to a standard skid steer coupler. All, of course, with the durability you expect from CASE.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Bore X Stroke | 3.9 x 4.3 in |
| Displacement | 207 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | FPT F5H FL463 A |
| Fuel Type | Diesel |
| Gross HP | 74 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Breakout Force | 10959 lb |
| Bucket Capacities | 1.2 yd³ (heaped) |
| Lift Capacity | 8217-8317 lb (full height) |
| Rated Operating Capacity (ISO) | 3984-4007 lb |
| Travel Speed | 3.0-18.6 mph |
| Tipping Load | 8014 lb (full turn tipping load ISO) |
| Dump Angle @ Max Height | 48 degrees |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 12.5 in |
| Height | 103.4 in |
| Height to Bucket Hinge Pin | 129.5 in |
| Height with Operator Cab | 103.4 in |
| Length | 234.8 in |
| Length with Standard Bucket | 231.1 in |
| Operating Weight | 12547 lb |
| Reach @ Maximum Height | 40.2 in |
| Rollback Angle | 40-62 degrees |
| Tire Size | 365/70 R18 Dunlop |
| Turning Radius Outside | 157 in |
| Wheel base | 87.6 in |
| Width (with bucket) | 80.7-82.7 in |
| Width | 73.2 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 14 gal |
| Fuel Tank | 22.7 gal |
| Hydraulic System | |
|---|---|
| Auxiliary Std Flow | 22.5 gpm |
| Aux Hydraulics Pressure | 3336 psi |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | 221F |
| Type | Wheel Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 234.80 in |
| Width | 73.20 in |
| Height | 103.40 in |
| Weight | 12547.00 lbs |
