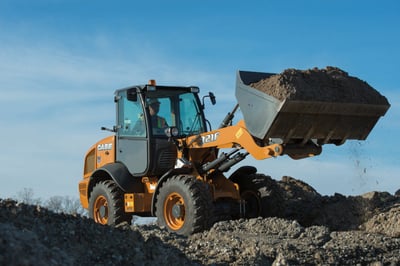

Case Construction 321F Compact Wheel Loader
New
Case Construction 321F Compact Wheel Loader
Model: 321F
- Up to 20.6-mph
- 74 engine horsepower
- 13,633 lb. operating weight
Product Description
MEET THE 321F WHEEL LOADER
The largest in the lineup of Tier 4 Final F Series Compact Wheel Loaders is the stout 321F with Z-Bar linkage. The 321F delivers a full-height lifting capacity of more than 8,000 lbs. (3,640 kg) and bucket breakout force of up to 11,000 lbs while still maintaining a low overall height of only 8 ft. 10 in. (2,681 mm). Suspension upgrades, a standard skid steer coupler and improved auxiliary hydraulics help you tackle more tasks while an ergonomically designed cab keep operators comfortably in control.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Bore X Stroke | 3.9 x 4.3 in |
| Displacement | 207 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | FPT F5H FL463 A |
| Fuel Type | Diesel |
| Gross HP | 74 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Breakout Force | 10076 lb |
| Bucket Capacities | 1.3 yd³ (heaped) |
| Lift Capacity | 8253-8354 lb (full height) |
| Rated Operating Capacity (ISO) | 4265-4316 lb |
| Travel Speed | 3.3-20.6 mph |
| Tipping Load | 8192 lb (full turn tipping load ISO) |
| Dump Angle @ Max Height | 45 degrees |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 14.6 in |
| Height | 105.5 in |
| Height to Bucket Hinge Pin | 133.7 in |
| Height with Operator Cab | 105.5 in |
| Length | 237.6 in |
| Length with Standard Bucket | 234.3 in |
| Operating Weight | 13633 lb |
| Reach @ Maximum Height | 39.5 in |
| Rollback Angle | 37-53 degrees |
| Tire Size | 365/80 R20 Dunlop |
| Turning Radius Outside | 157 in |
| Wheel base | 87.6 in |
| Width (with bucket) | 82.7 in |
| Width | 73.2 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 14 gal |
| Fuel Tank | 22.7 gal |
| Hydraulic System | |
|---|---|
| Auxiliary Std Flow | 22.5 gpm |
| Aux Hydraulics Pressure | 3336 psi |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | 321F |
| Type | Wheel Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 237.60 in |
| Width | 73.20 in |
| Height | 105.50 in |
| Weight | 13633.00 lbs |
