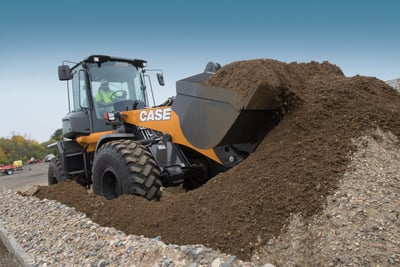

Case Construction 521G Full Size Wheel Loader
New
Case Construction 521G Full Size Wheel Loader
Model: 521G
- Up to 22.3-mph
- 142 engine horsepower
- 24,203 lb. operating weight
Product Description
MEET THE 521G WHEEL LOADER
The CASE 521G (142 horsepower (106 kw); 24,203 pounds) is the perfect all-around construction, utility, municipal and snow loader — agile power and performance with extreme application versatility (three linkage options, multiple axle configurations and compatibility with dozens of attachments). And now, with adjustable electro-hydraulic controls, a touchscreen display and collaborative fleet management technologies, the 521G delivers a powerful combination of productivity, efficiency and uptime — all protected by CASE ProCare.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Bore X Stroke | 4.09 x 5.20 in |
| Displacement | 275 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | FPT F4HFE413NB |
| Fuel Type | Diesel |
| Gross HP | 142 hp |
| No. Of Cylinders | 4 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Breakout Force | 20934 lb |
| Bucket Capacities | 1.67-2.10 yd³ (heaped) |
| Lift Capacity | 10215-12326 lb (full height) |
| Travel Speed | 3.8-22.3 mph |
| Tipping Load | 16159 lb (full turn tupping load ISO) |
| Dump Angle @ Max Height | 51-57 degrees |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 13.4 in |
| Height | 128.9 in |
| Height to Bucket Hinge Pin | 142 in |
| Height with Operator Cab | 128.9 in |
| Length | See full spec sheet |
| Operating Weight | 24203 lb |
| Reach @ Maximum Height | 36.9-50.3 in |
| Tire Size | 17.5 x 25 L2 Radial |
| Turning Radius Outside | 196.9 in |
| Wheel base | 108.3 in |
| Width (with bucket) | 100.4-101.4 in |
| Width | 96.4 in |
| Capacities | |
|---|---|
| DEF | 11.7 gal |
| Hydraulic Tank | 30 gal |
| Fuel Tank | 50 gal |
| Hydraulic System | |
|---|---|
| Aux Hydraulics Pressure | 3625 psi |
| Transmission | |
|---|---|
| Transmission | Powershift |
| Transmission Range | 4F/3R |
| Make/Model | |
|---|---|
| Model | 521G |
| Type | Wheel Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 269.10 in |
| Width | 96.40 in |
| Height | 128.90 in |
| Weight | 25834.00 lbs |
