New
Case Construction 721G Full Size Wheel Loader
New
Case Construction 721G Full Size Wheel Loader
Model: 721G
- Up to 25-mph
- 195 engine horsepower
- 32,633 lb. operating weight
Product Description
MEET THE 721G WHEEL LOADER

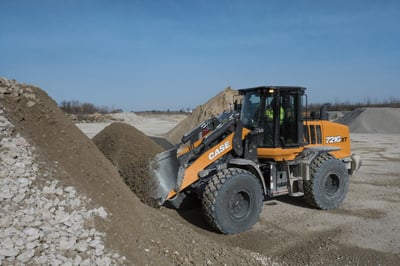

CASE 721G wheel loaders (32,633 pounds; 195 horsepower (145 kW)) roam every type of jobsite and operation imaginable, from large dairies to the most sprawling commercial construction developments. Each CASE G Series wheel loader is known for powerful breakout forces, fast cycle times, and extreme operator comfort and ergonomics. And now, with adjustable electro-hydraulic controls, a touchscreen display and collaborative fleet management technologies, the 721G delivers a powerful combination of productivity, efficiency and uptime — all protected by CASE ProCare.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Bore X Stroke | 4.09 x 5.20 in |
| Displacement | 411 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | FPT F4HFE613T |
| Fuel Type | Diesel |
| Gross HP | 195 hp |
| No. Of Cylinders | 6 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Breakout Force | 30485 lb |
| Bucket Capacities | 2.56-5.50 yd³ (heaped) |
| Lift Capacity | 13005-16155 lb (full height) |
| Travel Speed | 4.7-25 mph |
| Tipping Load | 20212 lb (full turn tupping load ISO) |
| Dump Angle @ Max Height | 50-55 degrees |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 15.1 in |
| Height | 133 in |
| Height to Bucket Hinge Pin | 156.5 in |
| Height with Operator Cab | 133 in |
| Length | See full spec sheet |
| Operating Weight | 32633 lb |
| Reach @ Maximum Height | 42.6-56.7 in |
| Tire Size | 20.5-R25 L3 Radial |
| Turning Radius Outside | 226.3 in |
| Wheel base | 128.1 in |
| Width (with bucket) | 106.3-106.8 in |
| Width | 100.7 in |
| Capacities | |
|---|---|
| DEF | 15.6 gal |
| Hydraulic Tank | 47 gal |
| Fuel Tank | 65 gal |
| Hydraulic System | |
|---|---|
| Aux Hydraulics Pressure | 3500-3625 psi |
| Transmission | |
|---|---|
| Transmission | Powershift |
| Transmission Range | 4F/3R |
| Make/Model | |
|---|---|
| Model | 721G |
| Type | Wheel Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 334.10 in |
| Width | 100.70 in |
| Height | 133.00 in |
| Weight | 33814.00 lbs |
