Case Construction 921G Full Size Wheel Loader
New
Case Construction 921G Full Size Wheel Loader
Model: 921G
- Up to 25-mph
- 255 engine horsepower
- 45,070 lb. operating weight
Product Description

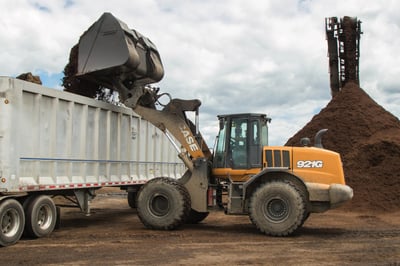

MEET THE 921G WHEEL LOADER
The agility and performance of a site loader with the power and capacity of a production machine, the CASE 921G wheel loader (255 horsepower / 190 kW; 45,070 pounds) is the link between both worlds — delivering fast cycle times, powerful breakout forces and high operating capacities capable of playing well in all industries. And now, with adjustable electro-hydraulic controls, a touchscreen display and collaborative fleet management technologies, the 921G delivers a powerful combination of productivity, efficiency and uptime — all protected by CASE ProCare.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Keyed Ignition | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Bore X Stroke | 4.09 x 5.20 in |
| Displacement | 411 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Model | FPT F4HFE613R |
| Fuel Type | Diesel |
| Gross HP | 255 hp |
| No. Of Cylinders | 6 |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Breakout Force | 37688 lb |
| Bucket Capacities | 3.25-4.75 yd³ (heaped) |
| Lift Capacity | 23404-26880 lb (full height) |
| Travel Speed | 4-25 mph |
| Tipping Load | 28529 lb (full turn tupping load ISO) |
| Dump Angle @ Max Height | 49-55 degrees |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 17.1 in |
| Height | 136.4 in |
| Height to Bucket Hinge Pin | 162.4 in |
| Height with Operator Cab | 136.4 in |
| Length | See full spec sheet |
| Operating Weight | 45070 lb |
| Reach @ Maximum Height | 46.8-59.9 in |
| Tire Size | 23.5-R25 L3 Radial |
| Turning Radius Outside | 236.6 in |
| Wheel base | 131.5 in |
| Width (with bucket) | 119.2-119.3 in |
| Width | 111.4 in |
| Capacities | |
|---|---|
| DEF | 15.6 gal |
| Hydraulic Tank | 53 gal |
| Fuel Tank | 76 gal |
| Hydraulic System | |
|---|---|
| Aux Hydraulics Pressure | 3500-3625 psi |
| Transmission | |
|---|---|
| Transmission | Gear Drive |
| Transmission Range | 4F/3R |
| Make/Model | |
|---|---|
| Model | 921G |
| Type | Wheel Loader |
| Product Dimensions & Weight | |
|---|---|
| Length | 353.20 in |
| Width | 111.40 in |
| Height | 136.40 in |
| Weight | 45651.00 lbs |
