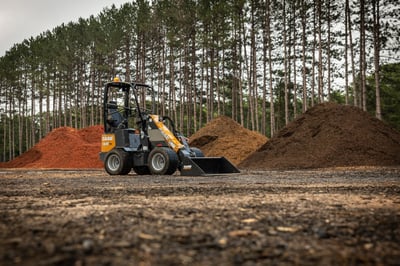

Case Construction SL12 Small Articulated Loader

Case Construction SL12 Articulated Loader.jpg

Product Description

Case Construction SL12.jpg

MEET THE SL12 ARTICULATED LOADER

The CASE SL12 is the smallest model in the lineup. It’s compact alright, but it puts real horsepower into your business – 25 hp to be precise. With the appropriate tire option, it measures in at just over 36” wide, so it fits into all kinds of tight spaces, including a standard trailer. There’s an intuitive joystick and hydraulic controls that offer excellent command. Once working, it boasts a lifting capacity of over 2,400 lbs., ideal for many landscaping applications. And with a multitude of available attachments, you can keep it working year-round. So, drop the shovel, and let’s really work.

Specs

Additional Specs
Keyed Ignition
Standard
Operator Station
ROPS, FOPS
Engine
Displacement
54.8 cu in
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Model
Kubota D902
Fuel Type
Diesel
Gross HP
25 hp
No. Of Cylinders
3
Performance
Lift Capacity
2425 lb
Travel Speed
9.3 mph
Tipping Load
2205 lb (straight)
Dump Angle @ Max Height
46 degrees
Driveline
4WD
Dimensions & Weight
Height
81.1 in
Length
87 in
Length with Standard Bucket
114.6 in
Length without Attachment
87 in
Operating Weight
2425 lb
Reach @ Maximum Height
85.4 in
Rollback Angle
43-45 degrees
Turning Radius Outside
87.6 in
Turning Radius
38.5 in
Wheel base
47.4 in
Width
36.2 in
Capacities
Hydraulic Tank
13.7 gal
Fuel Tank
11.9 gal
Hydraulic System
Aux Hydraulics Pressure
2200-5100 psi
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Transmission Range
2-Speed
Make/Model
Model
SL12
Type
Articulated Loader
Product Dimensions & Weight
Length
87.00 in
Width
36.20 in
Height
81.10 in
Weight
2425.00 lbs
