Product Description

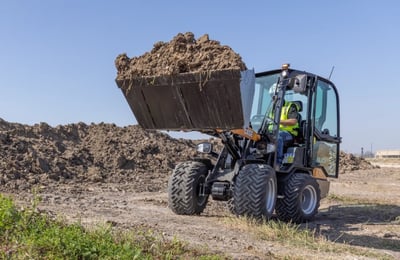

MEET THE SL23 ARTICULATED LOADER
Crank out a few extra tasks one day, and the next day you can take on a few more. That’s the true power of the CASE SL23. This compact, construction-grade machine makes it possible to do more. At 48.4” wide, it goes where others can’t and brings a lifting capacity of 4,850 lbs. along. The 4-wheel drive goes on any surface but goes easy on them. The hydraulic controls put precise command in your palm. And the attachments and optional 3-pin electrical connector scream possibilities, from lifting and dumping to snow blowing, digging and hammering.
Specs
Additional Specs | |
---|---|
Air Ride Susp Seat | Optional |
Cab Enclosure | Optional |
Keyed Ignition | Standard |
Operator Station | ROPS, FOPS |
Engine | |
---|---|
Displacement | 91.4 cu in |
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Model | Kubota V1505 |
Fuel Type | Diesel |
Gross HP | 26 hp |
No. Of Cylinders | 4 |
Performance | |
---|---|
Lift Capacity | 4850 lb |
Travel Speed | 12.4 mph |
Tipping Load | 4982 lb (straight) |
Dump Angle @ Max Height | 37 degrees |
Driveline | 4WD |
Dimensions & Weight | |
---|---|
Height | 90.6 in |
Height with Operator Cab | 89.9 in |
Length | 123.8 in |
Length with Standard Bucket | 150.8 in |
Length without Attachment | 123.8 in |
Operating Weight | 5181 lb |
Reach @ Maximum Height | 96.5 in |
Rollback Angle | 41-46 degrees |
Turning Radius Outside | 42.5 in |
Turning Radius | 92.2 in |
Wheel base | 62.2 in |
Width | 48.4 in |
Capacities | |
---|---|
Hydraulic Tank | 14.8 gal |
Fuel Tank | 9.8 gal |
Hydraulic System | |
---|---|
Aux Hydraulics Pressure | 3000-5200 psi |
Hydraulic System | Gear |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Transmission Range | 2-Speed |
Make/Model | |
---|---|
Model | SL23 |
Type | Articulated Loader |
Product Dimensions & Weight | |
---|---|
Length | 123.80 in |
Width | 48.40 in |
Height | 90.60 in |
Weight | 5181.00 lbs |
