Product Description

MEET THE SL23 TR ARTICULATED LOADER

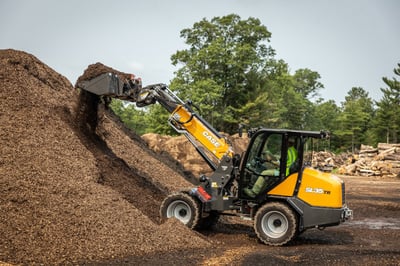

The meatiest machine in the small articulated loader line is the CASE SL35 TR. And it’s designed to help you feast on all kinds of jobs. It boasts an operating weight of 8,818 lbs., lifting capacity of 5,500 lbs. (telescopic boom retracted) and kicks out 65 hp – big output for its class. It wastes little time at a site, with travel speeds of up to 18.6 mph. This model has a telescopic boom that reaches nearly 170”, making taller stacking and offloading heights attainable. And with the optional 14-pin electric connector, you have the attachment capabilities of a larger machine, along with the working abilities of a larger outfit.
Specs
Additional Specs | |
---|---|
Air Ride Susp Seat | Standard |
Cab Enclosure | Optional |
Keyed Ignition | Standard |
Operator Station | ROPS, FOPS |
Engine | |
---|---|
Displacement | 148.5 in³ |
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Model | Kubota V2403 CR |
Fuel Type | Diesel |
Gross HP | 65 hp |
No. Of Cylinders | 4 |
Performance | |
---|---|
Lift Capacity | 5500 lb |
Travel Speed | 18.6 mph |
Tipping Load | 5510 lb (straight) |
Dump Angle @ Max Height | 37 degrees |
Driveline | 4WD |
Dimensions & Weight | |
---|---|
Height | 89.6 in |
Height with Operator Cab | 89.6 in |
Length | 160.1 in |
Length without Attachment | 160.1 in |
Operating Weight | 8818 lb |
Reach @ Maximum Height | 169.8 in |
Rollback Angle | 42-55 degrees |
Turning Radius Outside | 142.3 in |
Turning Radius | 65.9 in |
Wheel base | 77.6 in |
Width | 52.8 in |
Capacities | |
---|---|
Hydraulic Tank | 15.9 gal |
Fuel Tank | 18 gal |
Hydraulic System | |
---|---|
Aux Hydraulics Pressure | 3200-6500 psi |
Hydraulic System | Gear |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Transmission Range | 2-Speed |
Make/Model | |
---|---|
Model | SL35TR |
Type | Articulated Loader |
Product Dimensions & Weight | |
---|---|
Length | 160.10 in |
Width | 52.80 in |
Height | 169.80 in |
Weight | 8818.00 lbs |
